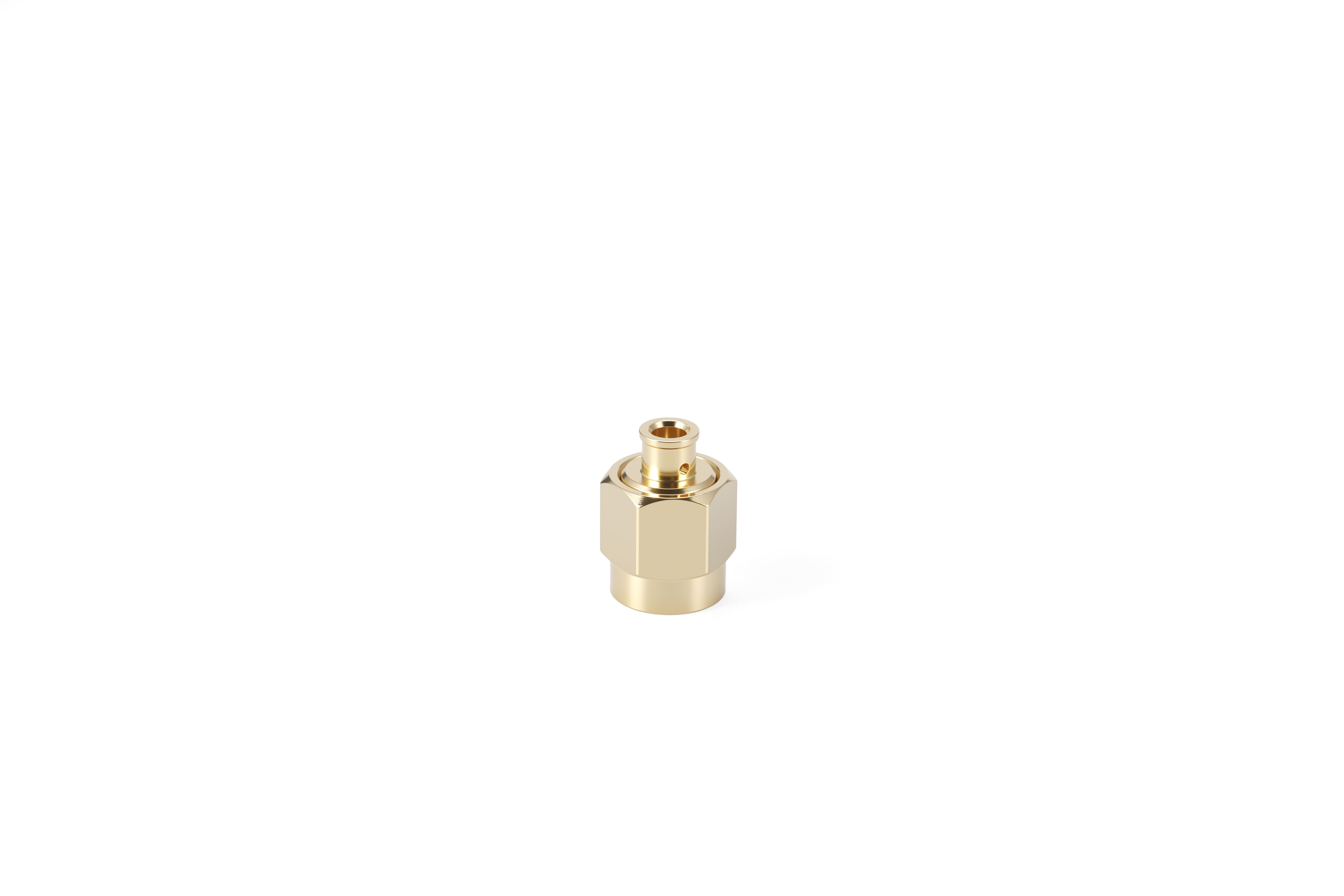

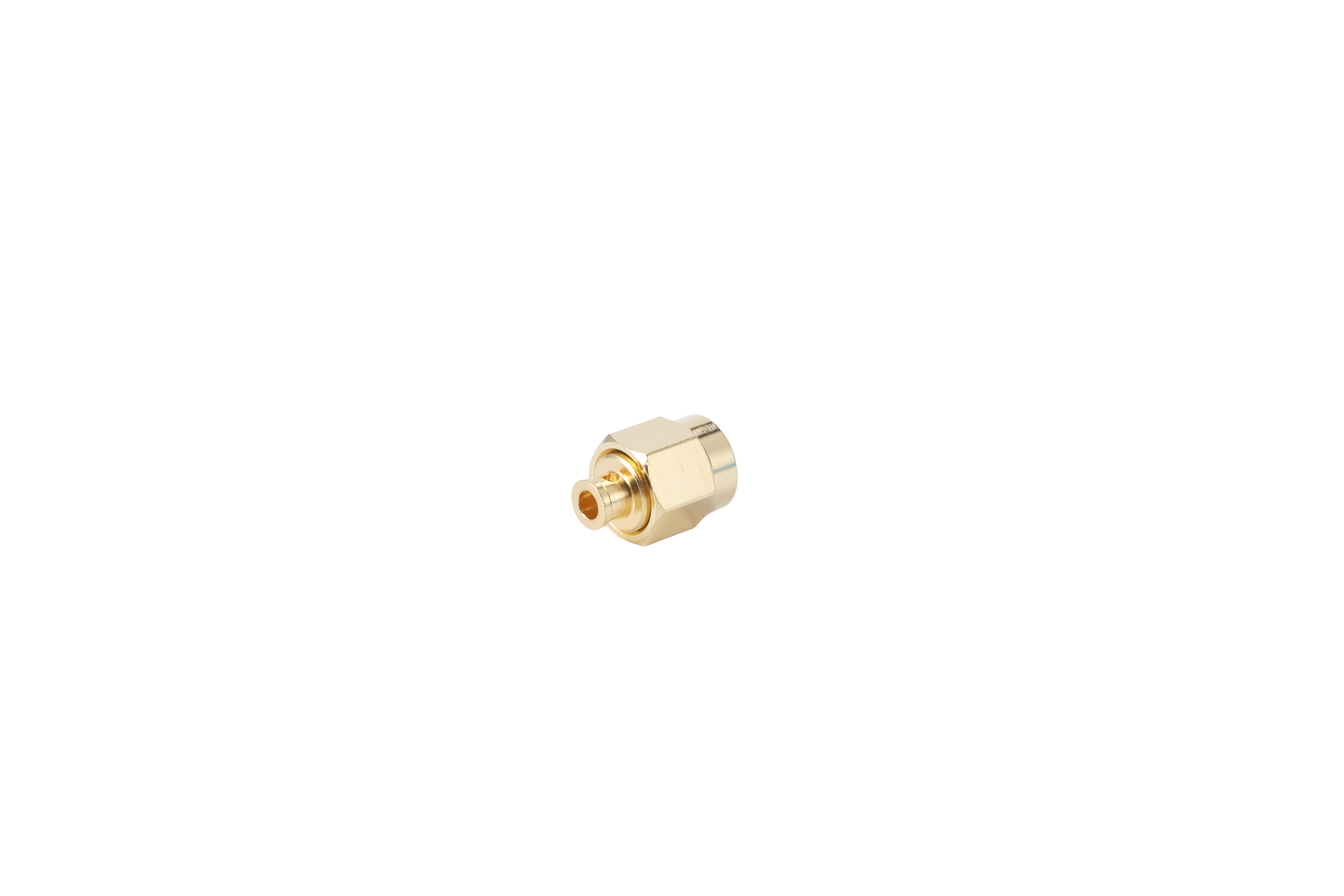

SMA Male Connector for RG405/.086/TFLEX086 Cable
Model: ISMA-JB405-27
Product Introduction
ISMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information
SMA Male Connector for RG405/.086/TFLEX086 Cable
Teruilai P/N: ISMA-JB405-27
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-18GHZ | |
| Dieletric withstanding voltage | 1000V(volts RMS) | |
| Center contact resistance | ≦3mΩ | |
| Outer contact resistance | ≦2mΩ | |
| Insulation resistance | ≧5000MΩ | |
| VSWR | 1.30 | |
| Mechanical & Environmental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| RoHs Compliant | ||
| Durability(matings) | >500 cycles | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Insulators | Teflon | |
| Coupling nut | Stainless Steel | Passivated |
