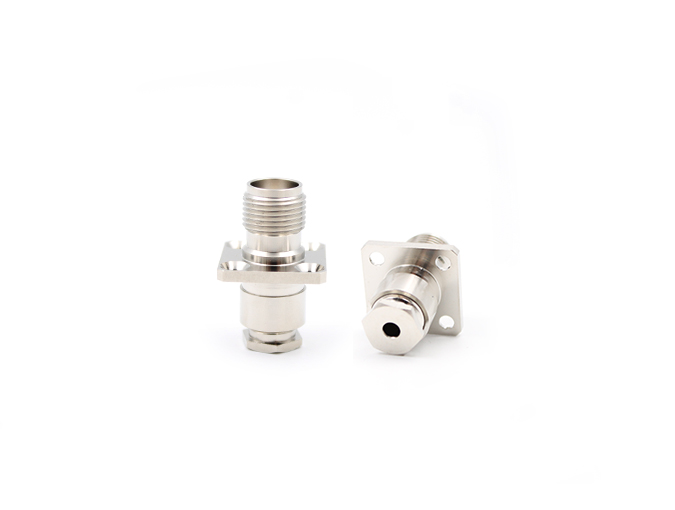

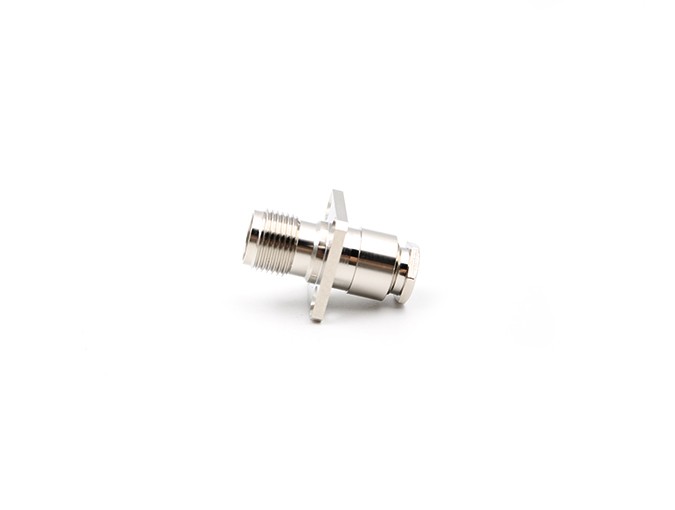

RF Connector TNC Female Flange for RG316 Cable, Clamp
Model: TNC-KF3A
Product Introduction
TYPE TNC are screw-coupling middle-power coaxial connectors,which has the excellent performance of great ibration-proof,highreliability and wide working frequency, They are specially used to connect RF cables in mobile ication,,aerospace,radar applications and allkinds of radio instruments. The interface mating dimensions and technical characteristics are according to the standard of MIL-C-39012、IEC60169-17 and CECC22200。
Detailed Information
RF Connector TNC Female Flange for RG316 Cable, Clamp
Teruilai P/N: TNC-KF3A Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦3mΩ | |
| .Outer conductor | ≦2mΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel Plated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
