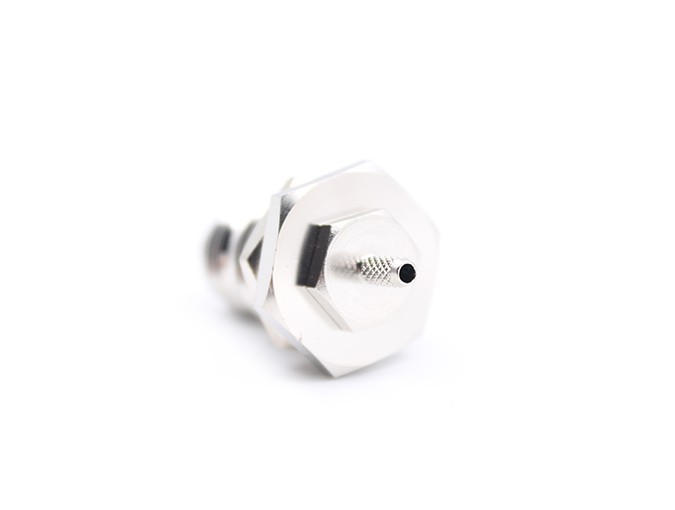

RF Connector TNC Female Bulkhead for RG316 cable, Crimp
Model: TNC-KY3CY
Product Introduction
TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.
Detailed Information
RF Connector TNC Female Bulkhead for RG316 cable, Crimp
Teruilai P/N: TNC-KY3CY Datasheet
| Electrical data | Requirments | |
| Frequency range | DC-3GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 70℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel Plated |
| Pin contacts | Bronze | Gold |
| Insulators | Teflon | |
| Coupling Nut | Brass | Nickel Plated |
| Gasket | Silicon rubber | |
| Washer | Brass | Nickel Plated |
