RF Coaxial Connectors · TNC

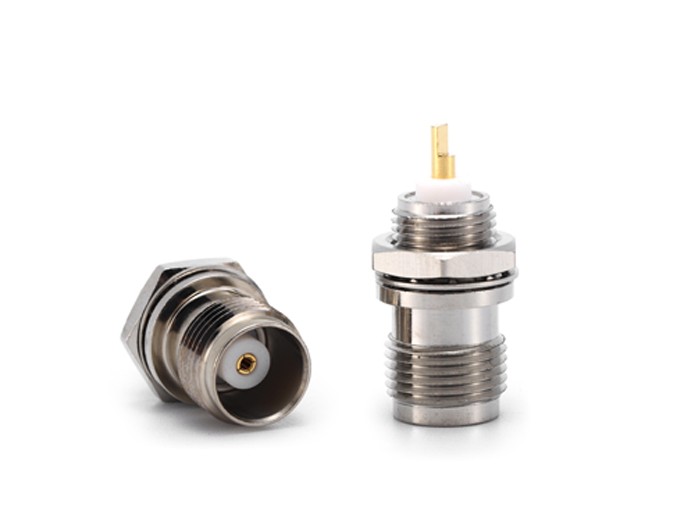

TNC 50Ω female bulkhead
Model: TNC-50KY
Product Introduction
TYPE TNC is a middle-power coaxial connector, with screw-coupling mechanism.The connector is applicable from DC up to 11GHZ . It has two intermateable version of 50Ω and 95Ω. The advantages are high reliablity , vibration-proof , superior machanical and electrical performances.
Detailed Information
TNC 50Ω female bulkhead
Teruilai P/N: TNC-50KY Datesheet
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Dieletric withstanding voltage | ≧1500V | |
| Woking voltage | ≦500V | |
| Insulation resistance | ≧5000MΩ | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel Plated |
| Insulators | Teflon | |
| Contact Pin | Phosphor bronze | Gold Plated |
| Coupling Nut | Brass | Nickel Plated |
| Gasket | Phosphor bronze | Gold Plated |
