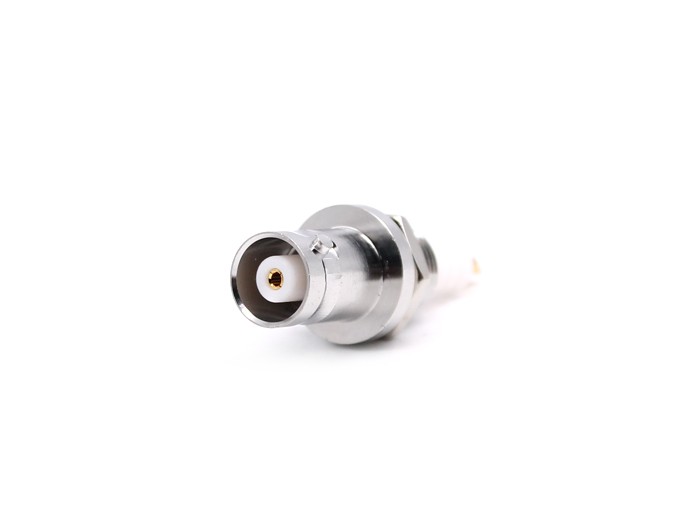

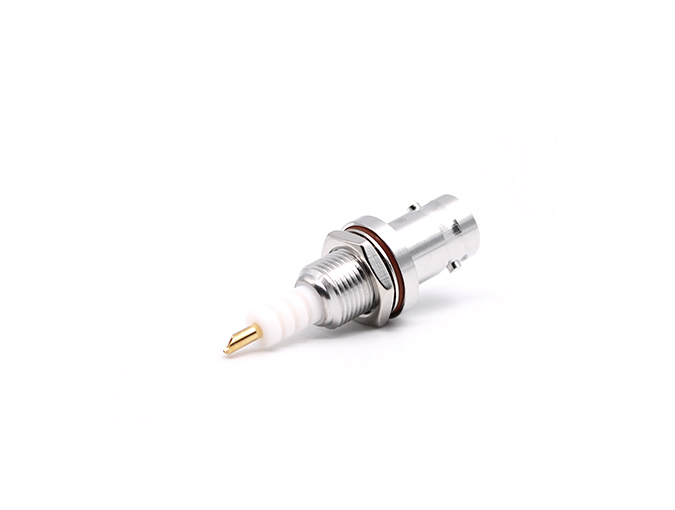

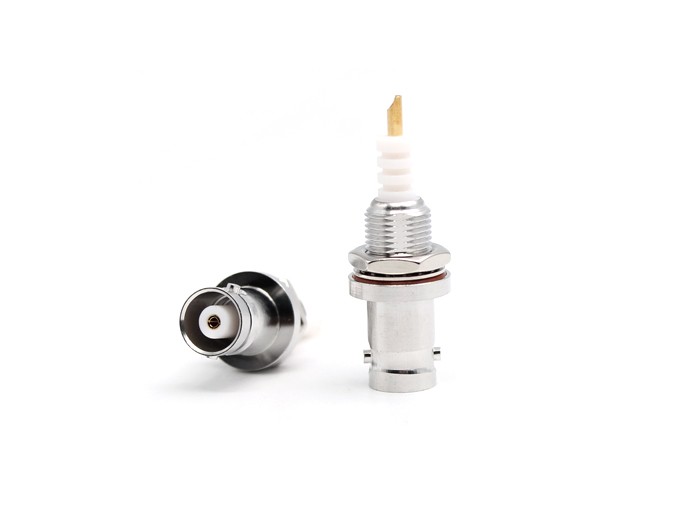

MHV Female bulkhead connector for Terminal
Model: MHV-KYD1
Product Introduction
MHV is a miniature high voltage connector,3500v (RMS) test high voltage (paired) in the pairing case,working voltage 1.6kv (RMS) and applicable to 300MHZ.
Detailed Information
MHV Female bulkhead connector for Terminal
Teruilai P/N: MHV-KYD1 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-300Mhz | |
| Dieletric withstanding voltage | 5.0KV rms,50Hz(depending on cable) | |
| Insulation Resistance | ≧5GΩ | |
| Characteristic impedance | 50Ω | |
| Contact resistance | ||
| Center conductor | ≦2mΩ | |
| Outer conductor | ≦1mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco plated |
| Pin Contact | Bronze | Gold |
| Gaskets | Silicone rubber | |
| Insulators | PTFE | |
