RF Coaxial Connectors · SMA

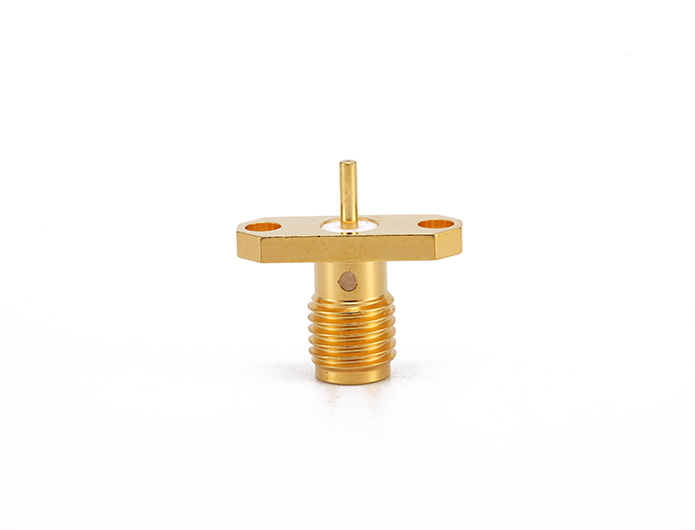

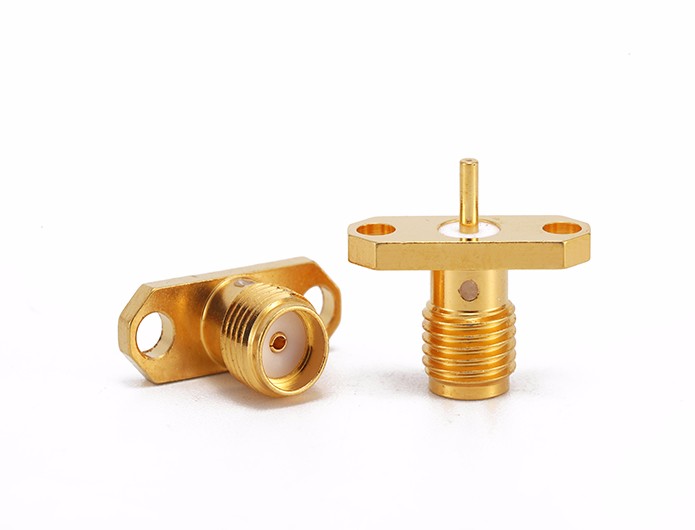

SMA female flange connector mount
Model: SMA-KFD20
Product Introduction
SMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information
SMA female flange connector mount
Teruilai P/N :SMA-KFD20 Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Characteristic impedance | 50Ω | |
| Frequency range | 0-6GHZ | |
| Dieletric withstanding voltage | 1000V（volts RMS） | |
| Insulation Resistance | ≧5000MΩ | |
| .Center conductor | ≦3mΩ | |
| .Outer conductor | ≦2mΩ | |
| Environmental&Mechanical data | Requirments | |
| Temperature range | -55℃ to 155℃ | |
| RoHs Complaint | ||
| Durability (matings) | >500 cycles | |
| Material&Finish data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold plated |
| Insulator | Teflon | |
| Conatct Pin | Beryllium Copper | Gold plated |
