RF Coaxial Connectors · MMCX

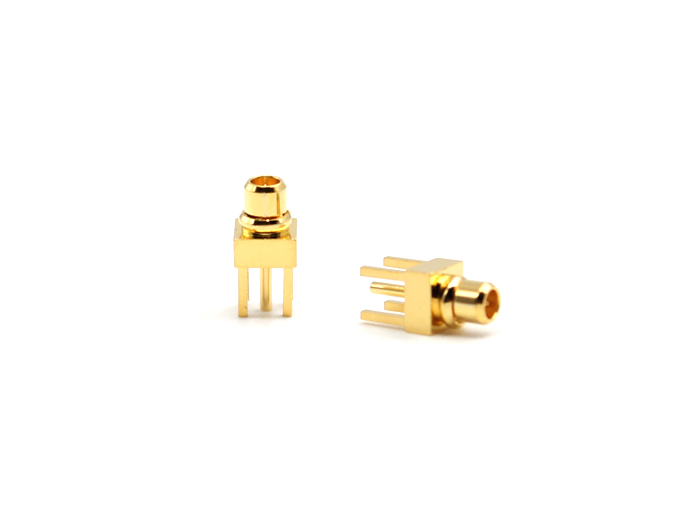

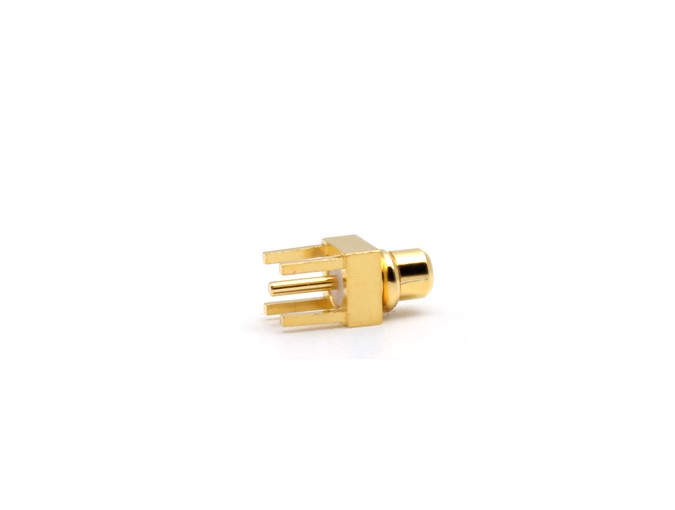

RF Connector MMCX Male PCB Mount
Model: MMCX-JHD
Product Introduction
TYPE MMCX is a one kind of miniature connector with snap-on mechanism.The connector is applicable from DC up to 6GHZ with advantages of small size, light weight, low RF leakage and etc. It has two kind of versions:50Ω and 75Ω.
Detailed Information
RF Connector MMCX Male PCB Mount
Teruilai P/N: MMCX-JHD Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-6GHZ | |
| Dieletric withstanding voltage | 500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| VSWR | 1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -40℃ to 90℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin contacts | Brass | Gold |
| Insulators | PTEE | |
