RF Connector MCX Female PCB Mount
Model: MCX-KHD4-1
Product Introduction
Type MCX is one kind of RF coaxial conectors with miniature snap-on coupling mechanism, which has the characteristics of light weight, small size, concise structure and easy to use, they are sure to fit most applications where space, weight, performance and easey to assembly are required in RF circuits of fixed communication instruments.
Detailed Information

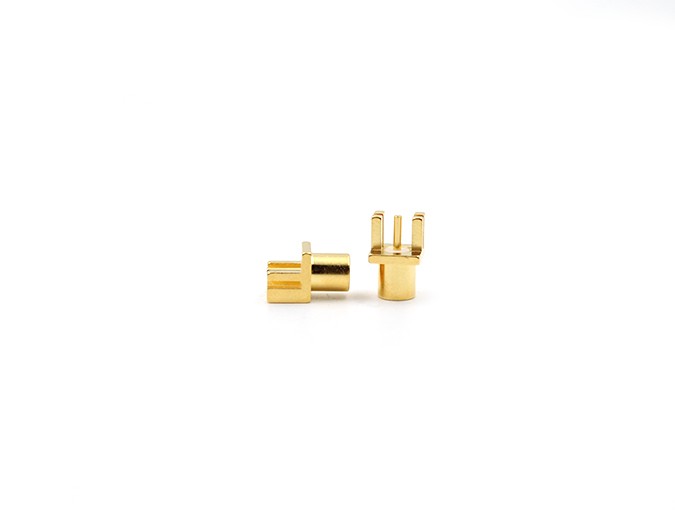

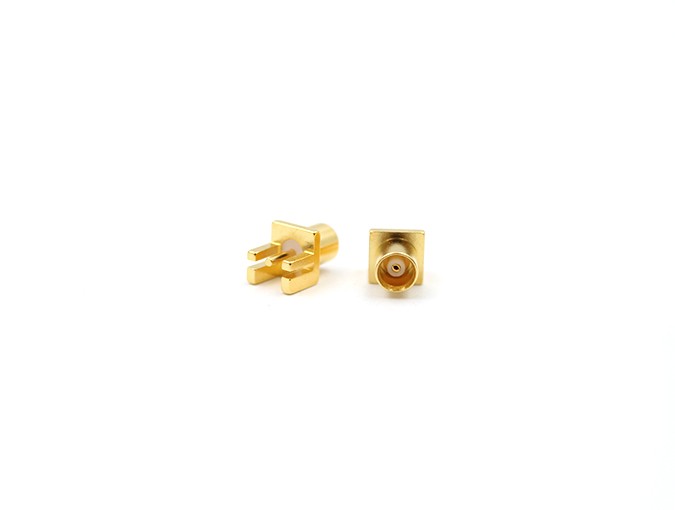

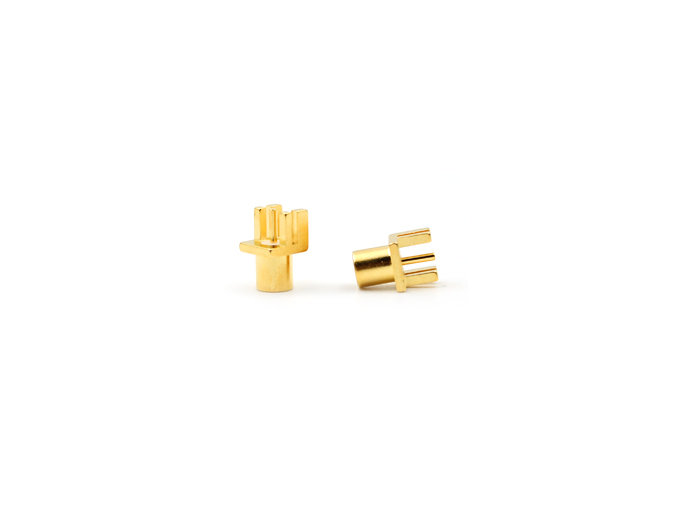

RF Connector MCX Female PCB Mount
Teruilai P/N: MCX-KHD4-1 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-6GHZ(50Ω) | |
| Dieletric withstanding voltage | 750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧1000MΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to+125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Insulators | Teflon | |
| Pin contacts | Beryllium copper | Gold |
