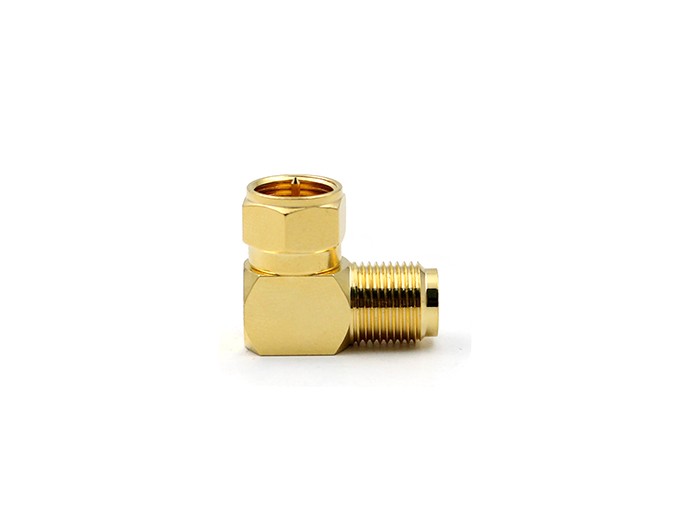

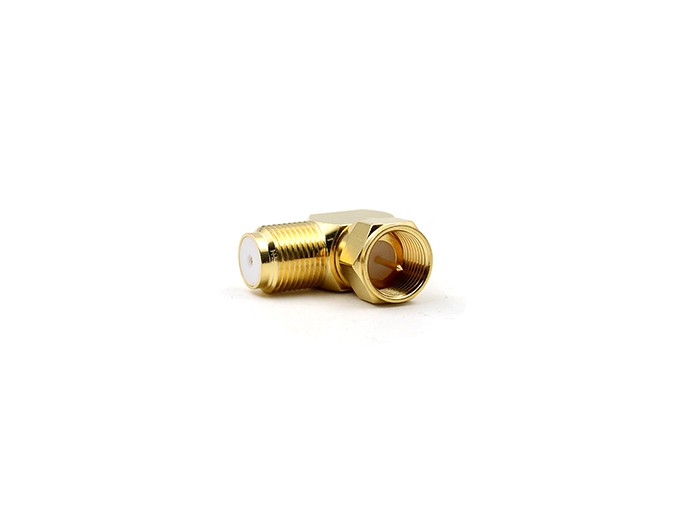

RF Adapter F Male to Female Right Angle
Model: F-JWK
Product Introduction
Detailed Information

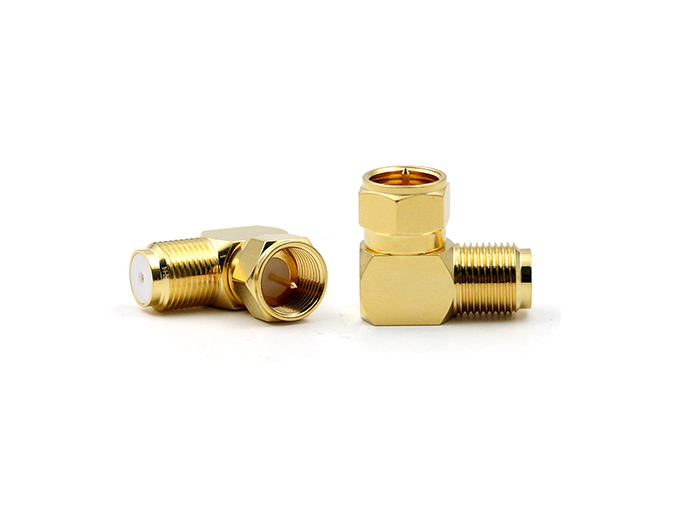

RF Adapter F Male to Female Right Angle
Teruilai P/N: F-JWK Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 75Ω | |
| Frequency | DC-3GHz | |
| Center Contact Resistance | ≦6MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Pin Contact | Beryllium copper | Gold |
| Insulators | Teflon | |
