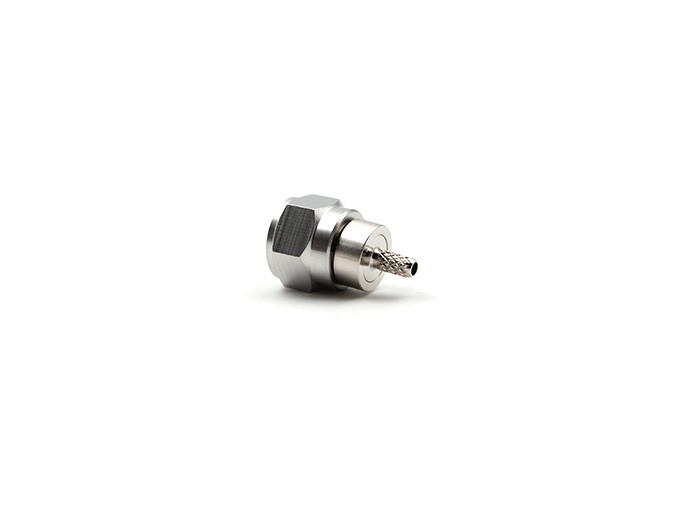

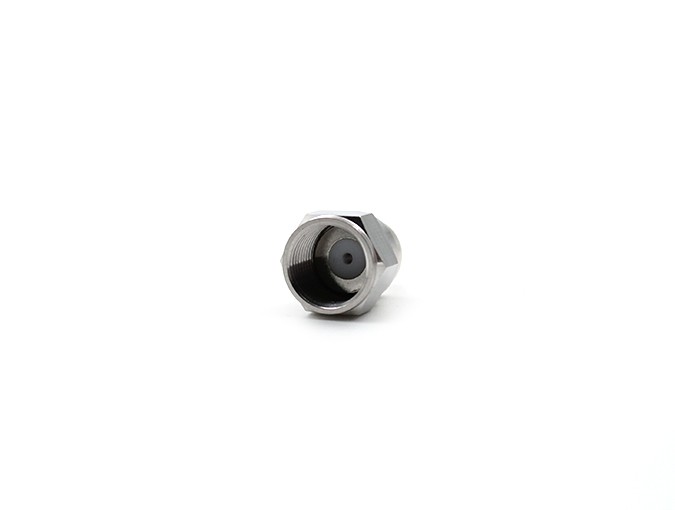

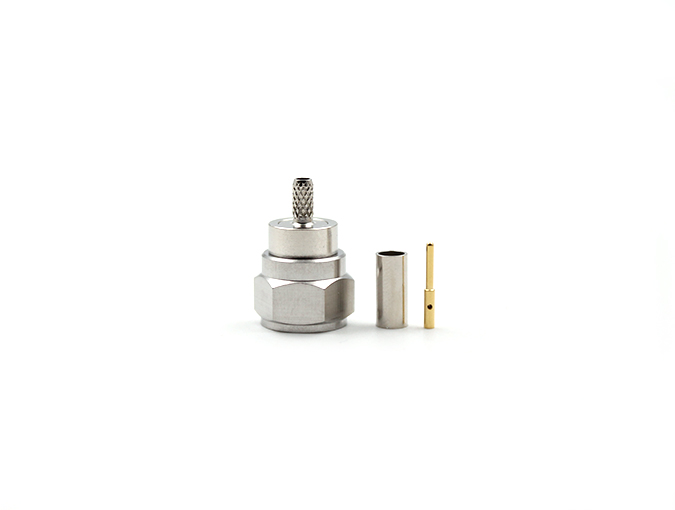

RF Connector Stainless Steel F Male for RG316/GR174 Cable
Model: F-J3YG
Product Introduction
Detailed Information
RF Connector Stainless Steel F Male for RG316/GR174 Cable
Teruilai P/N: F-J3YG
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 75Ω | |
| Frequency | DC-2GHz | |
| Center Contact Resistance | ≦6MΩ | |
| Outer Contact Resistance | ≦1MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin Contact | Beryllium copper | Gold |
| Insulators | Teflon | |
