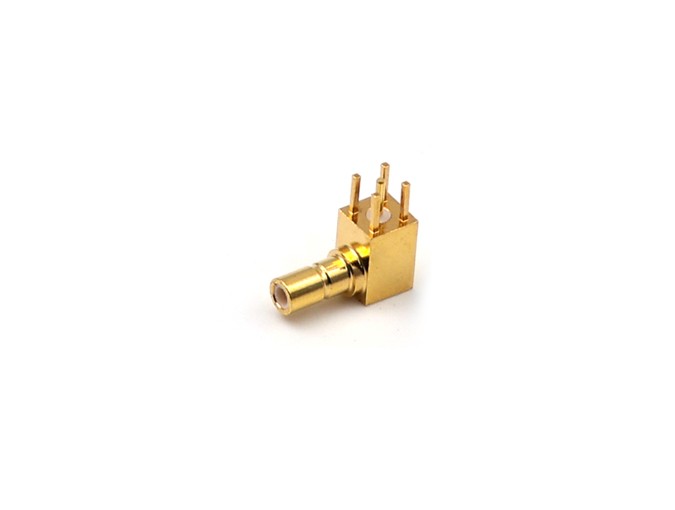

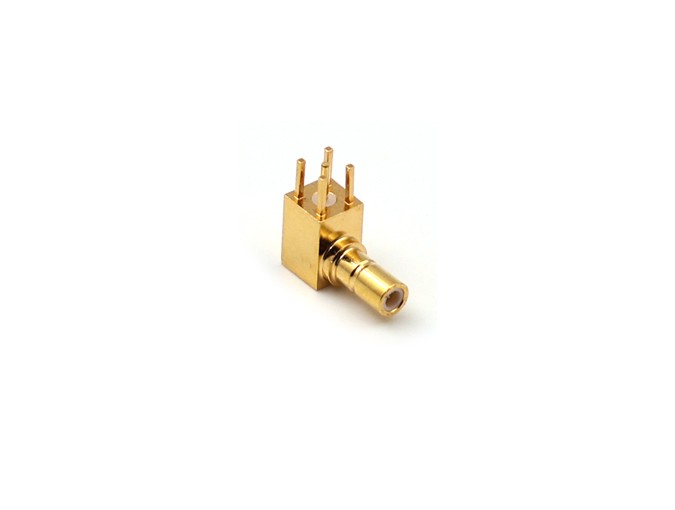

RF Connector SSMB Male Right Angle PCB Mount
Model: SSMB-JWHDA
Product Introduction
Detailed Information

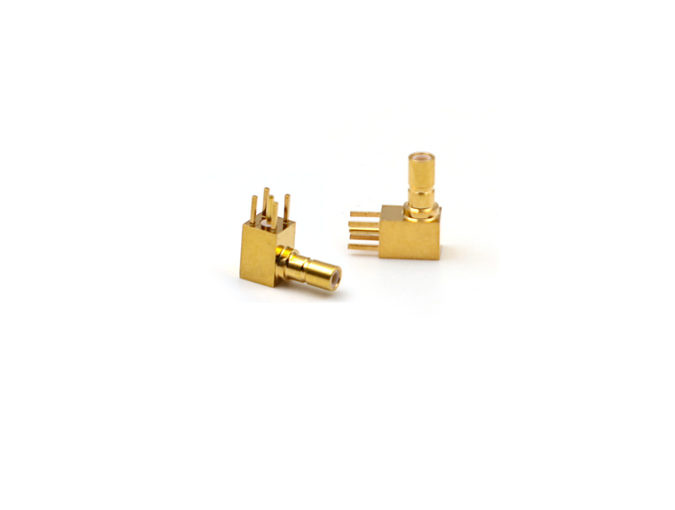

RF Connector SSMB Male Right Angle PCB Mount
Teruilai P/N: SSMB-JWHDA
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-3GHz | |
| Center Contact Resistance | ≦5MΩ | |
| Outer Contact Resistance | ≦2.5MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
