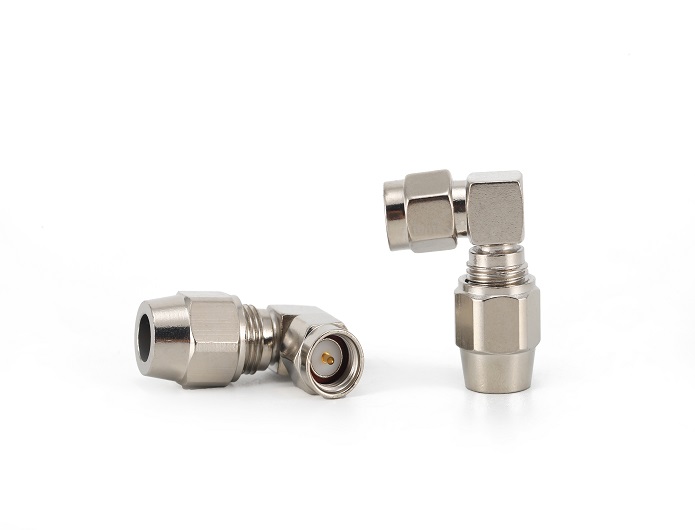

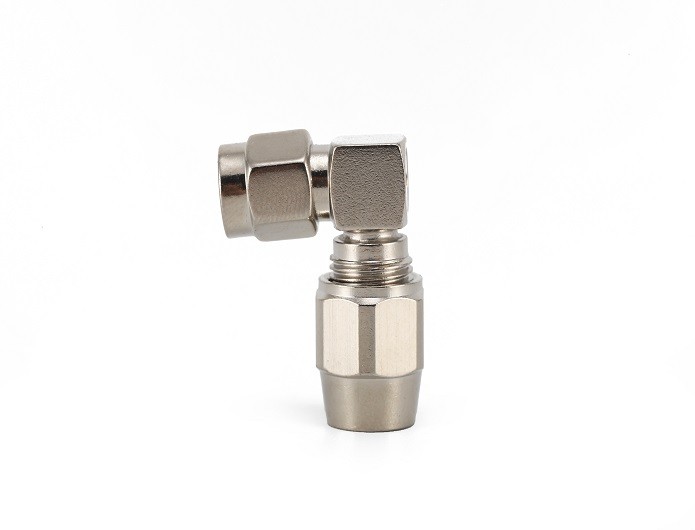

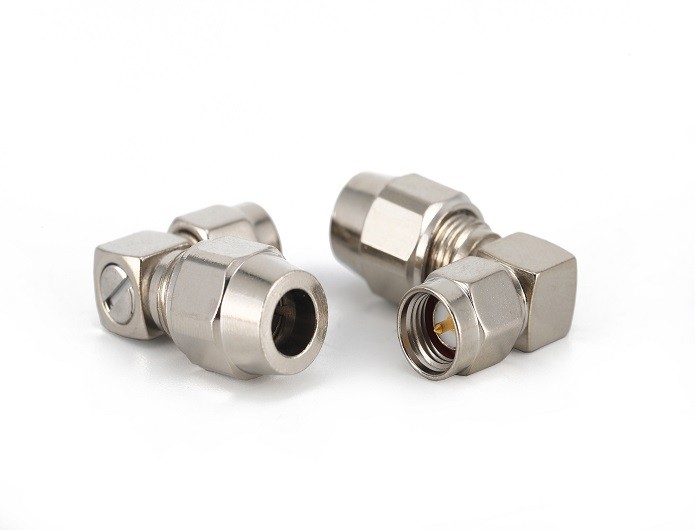

SMA Male Right Angle Clamp for RG 58 Cable RF Connector
Model: SMA-JW5A
Product Introduction
SMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information
SMA Male Right Angle Clamp for RG 58 Cable RF Connector
Teruilai P/N: SMA-JW5A Outline Drawing.pdf
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-6GHz | |
| Center Contact Resistance | ≦3MΩ | |
| Outer Contact Resistance | ≦2MΩ | |
| Insulation Resistance | ≧5000mΩ | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -40℃ ~ +70℃ | |
| RoHs Compliant | Yes | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel-plated |
| Insulators | Teflon | |
| Contact Pin | Brass | Gold-plated |
| Washer | Brass | Nickel-plated |
| Nut | Brass | Nickel-plated |
| Ferrule | Brass | NIckel-plated |
| Gasket | Silicon Rubber(red color) | |
