RF Coaxial Connectors · SSMB

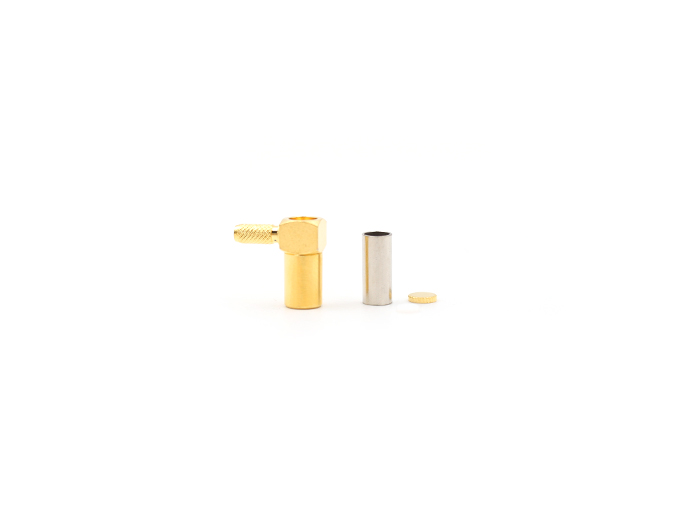

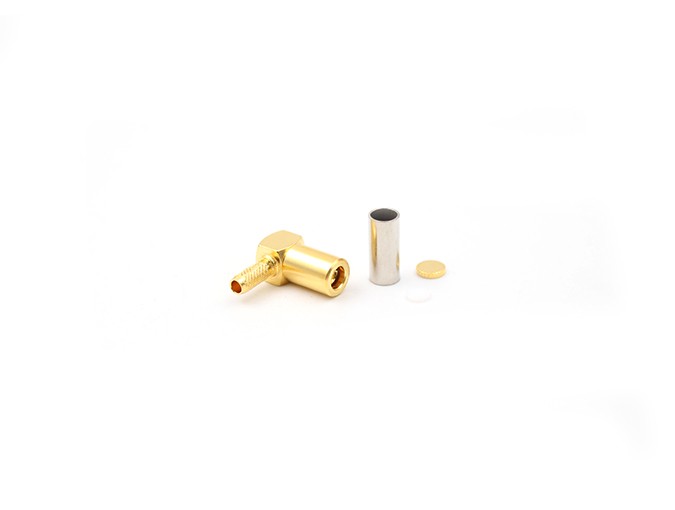

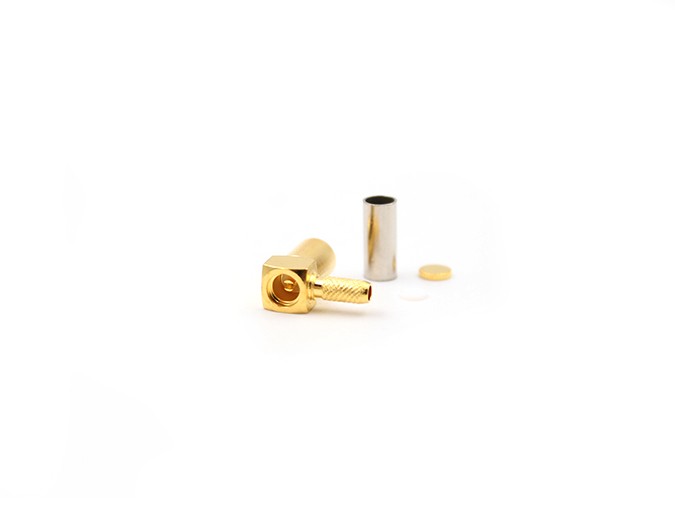

SSMB Female Right angel Connector for RG316 Cable
Model: SSMB-KW3
Product Introduction
SSMB is a microminiature RF Coaxial Connector with sanp-on coupling mechanism,wbich is the samller version of SMB connector. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in connecting RF coaxial circuits and cables in micro electrical instrument.
Detailed Information
SSMB Female Right angel Connector for RG316 Cable
Teruilai P/N: SSMB-KW3 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-3GHz | |
| Center Contact Resistance | ≦5MΩ | |
| Outer Contact Resistance | ≦2.5MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +125℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
