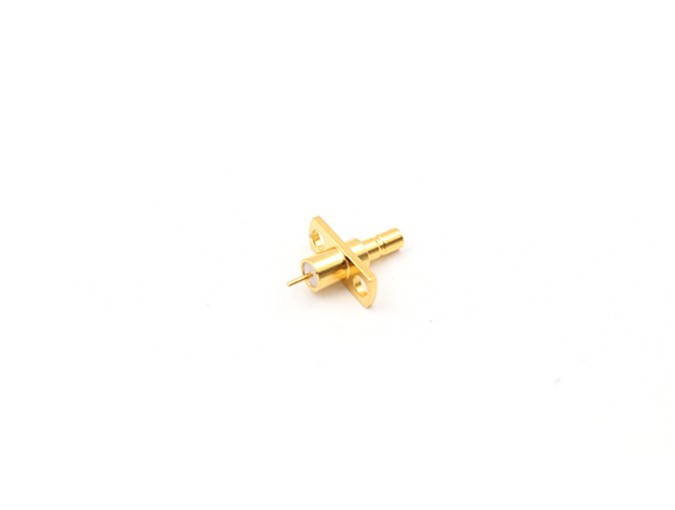

SSMB Male Flange Connector for Terminal
Model: SSMB-JFD
Product Introduction
SSMB is a microminiature RF Coaxial Connector with sanp-on coupling mechanism,wbich is the samller version of SMB connector. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in connecting RF coaxial circuits and cables in micro electrical instrument.
Detailed Information

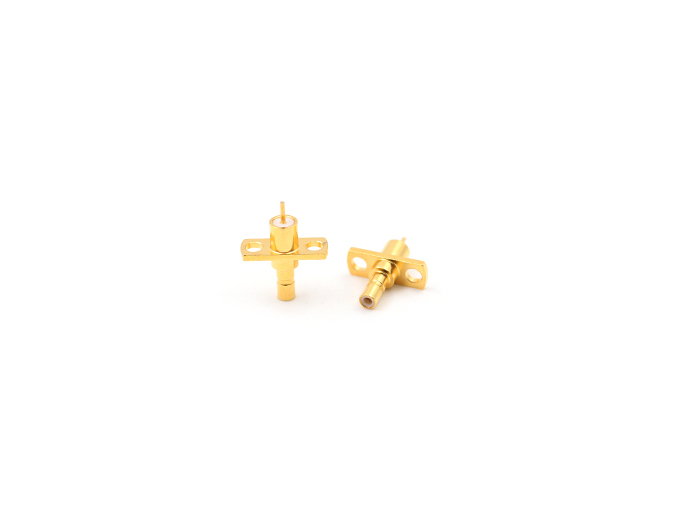

SSMB Male Flange Connector for Terminal
Teruilai P/N: SSMB-JFD Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Impedence | 50Ω | |
| Frequency | DC-3GHz | |
| Center Contact Resistance | ≦5MΩ | |
| Outer Contact Resistance | ≦2.5MΩ | |
| Insulation Resistance | ≧1000mΩ | |
| Mechanical & Enviromental | Requirments | |
| Temperature range | -45℃ ~ +85℃ | |
| Durability | >500 cycles | |
| Material &plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Pin Contact | Brass | Gold |
| Insulators | Teflon | |
