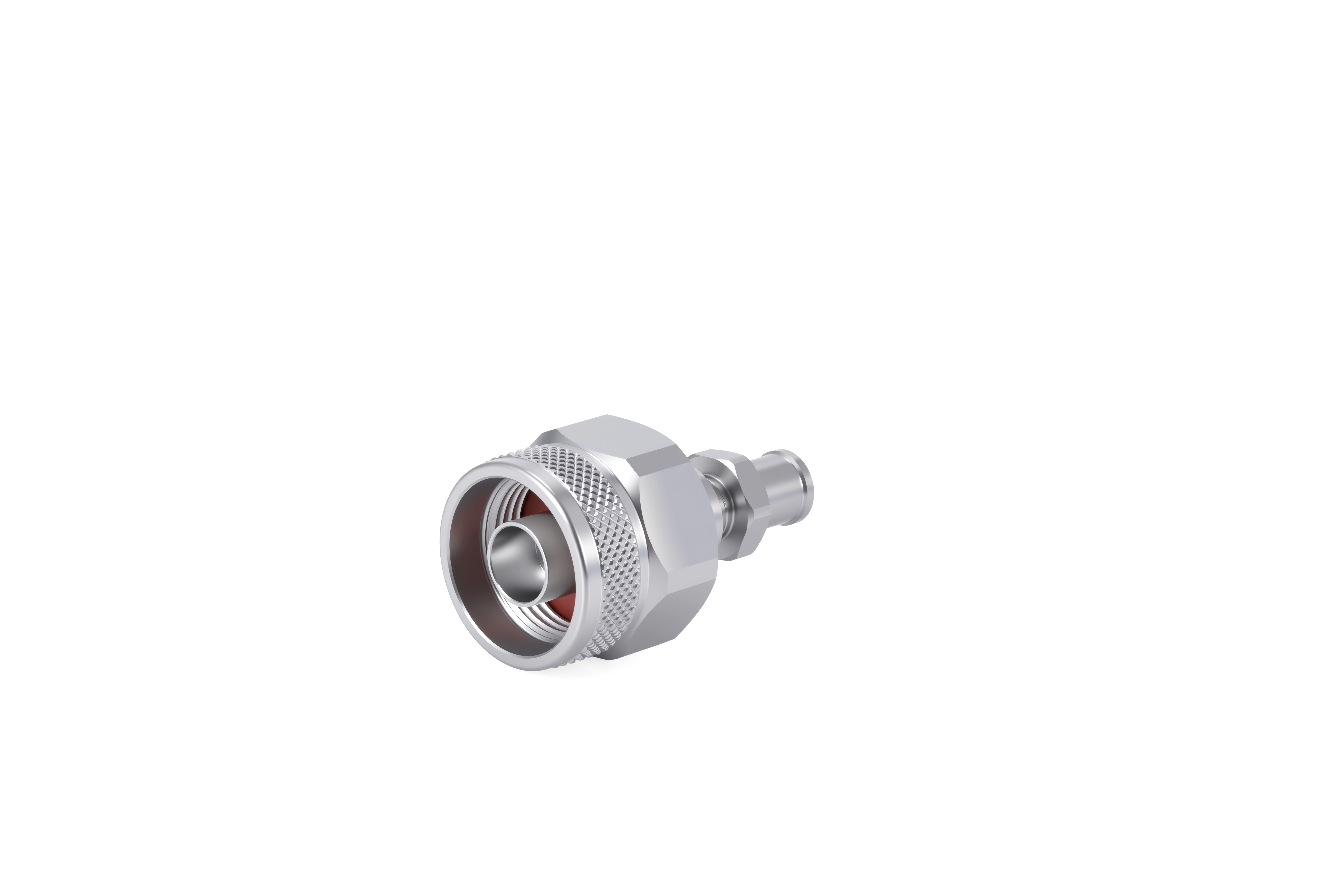

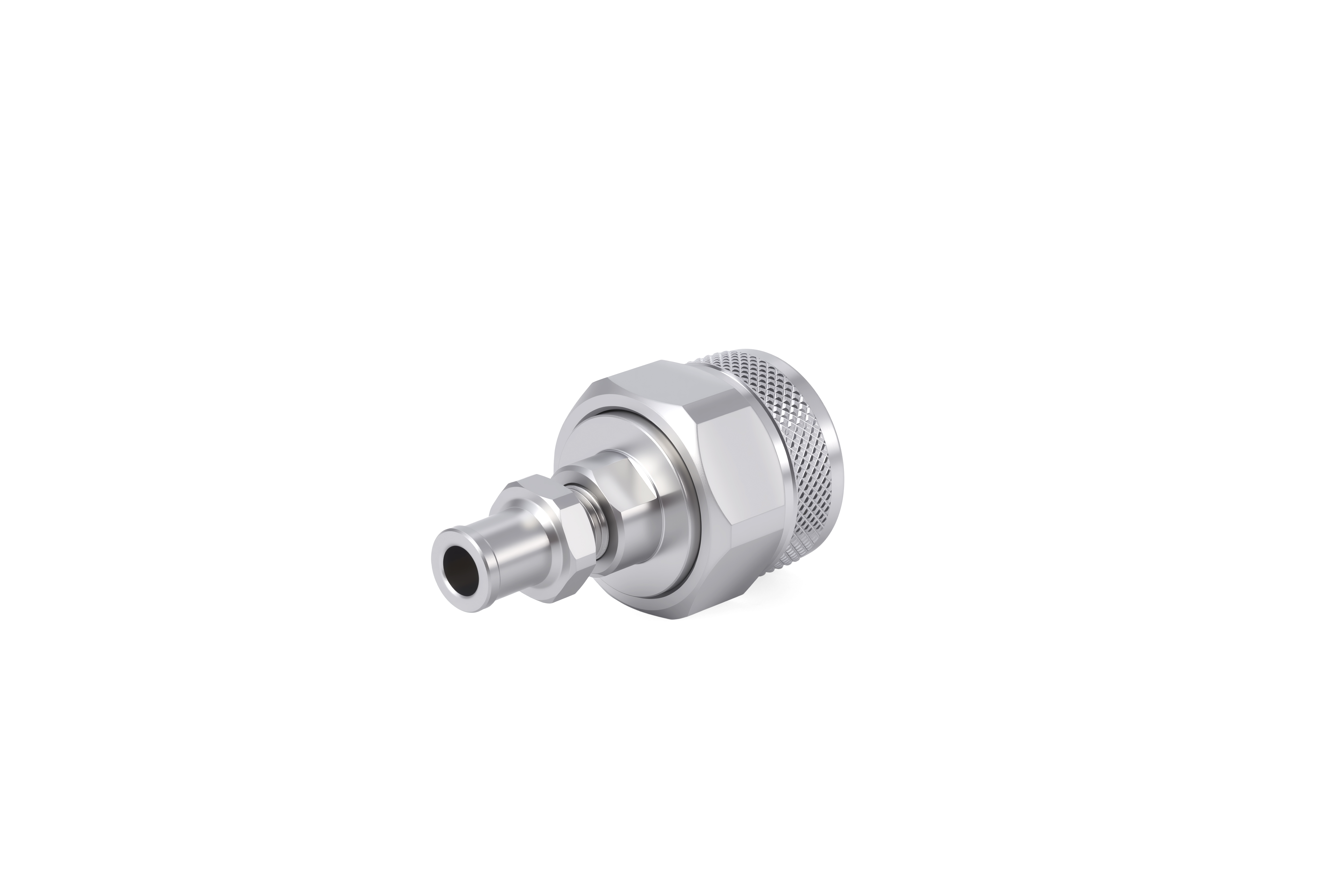

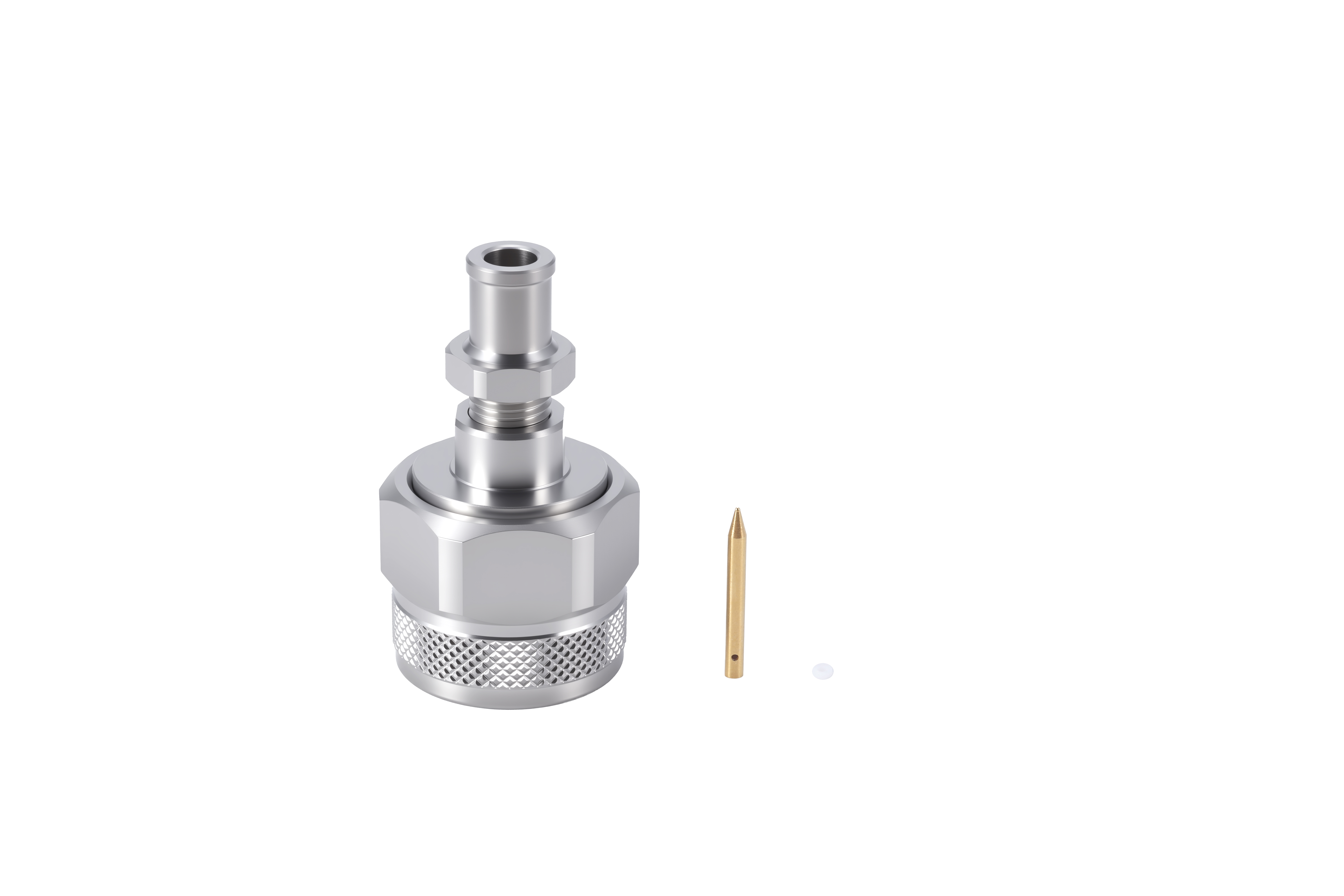

N male Connector Stainless Steel for CXN3507 Cable
Model: N-J3507AG
Product Introduction
N connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.
Detailed Information
N male Connector Stainless Steel for CXN3507 Cable
Teruilai P/N: N-J3507AG
RoHS Certificate: Complian
| Electrical | Requirments | |
| impedance | 50Ω | |
| Frequency range | 0~6GHZ | |
| Dieletric withstanding voltage | 1500V(volts RMS) | |
| Working voltage | 1000V rms | |
| Insulation Resistance | ≧5000MΩ | |
| Environmental data | Requirments | |
| Temperature range | -40℃ ~ 125℃ | |
| RoHs Complaint | ||
| Durability | >500 cycles | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | brass | Nickel-plated |
| Insulator | Teflon | |
| Conatct Pin | Brass | Gold-plated |
