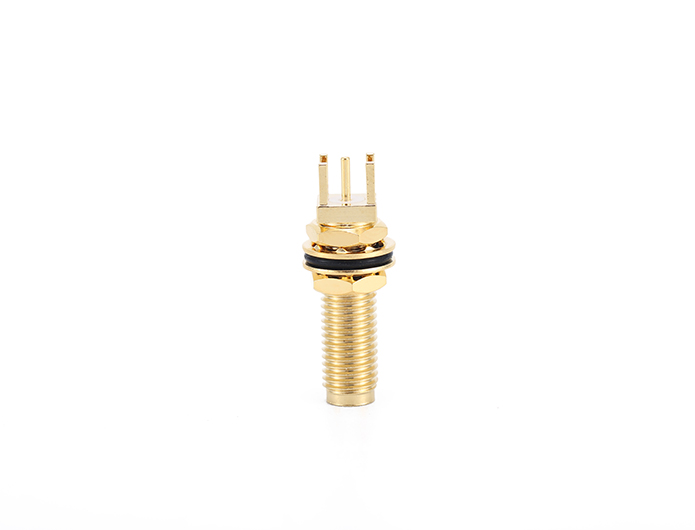

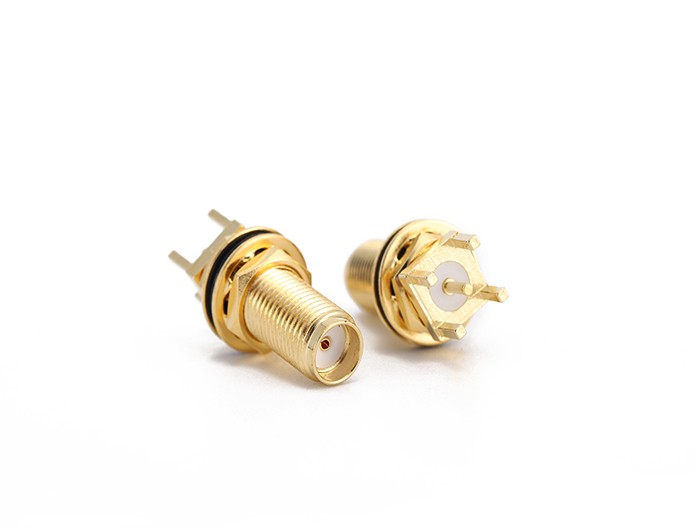

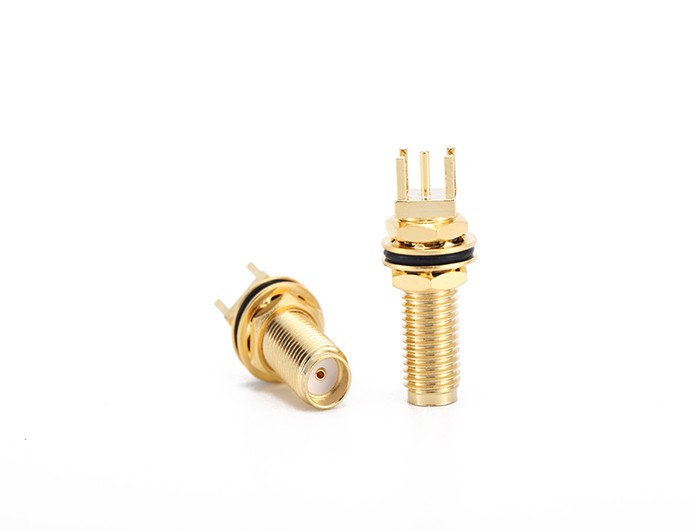

SMA female bulkhead PCB mount RF coaxial connector
Model: SMA-KYHD2
Product Introduction
SMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information
SMA female bulkhead PCB mount RF coaxial connector
Teruilai P/N: SMA-KYHD2 Datesheet
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Working Voltage | ≤335V | |
| Insulation resistance | ≥5000MΩ | |
| Dielectric Strength | 1000V | |
| Center contact resistance | ≤3MΩ | |
| Outer contact resistance | ≤3MΩ | |
| Frequency | DC~6GHz | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Inner contact | Bronze | Gold-plated |
| Outer contact | Brass | Gold-plated |
