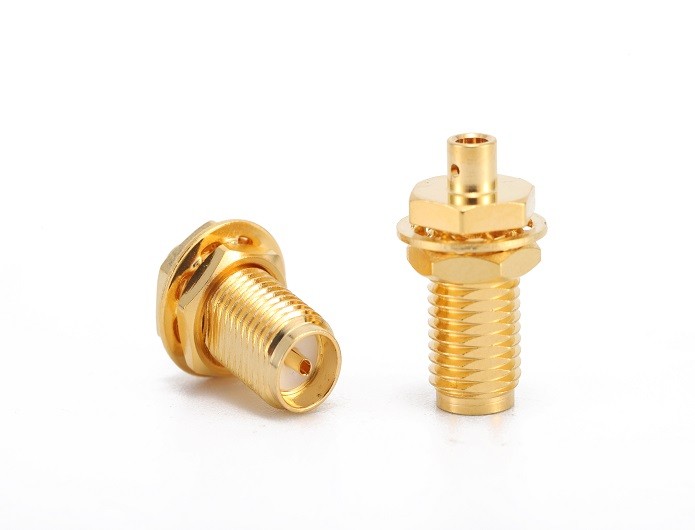

Our SMA Female Bulkhead RF Connector for 0.086 cable is a precision coaxial connector designed for high-frequency RF and microwave applications requiring reliable signal transmission and stable mechanical performance.

Featuring a standard SMA female jack interface, bulkhead mounting structure, and 50 Ohm impedance design, this connector provides excellent electrical performance for compact RF systems, communication equipment, antenna assemblies, and test instruments.

As a professional SMA bulkhead connector manufacturer, we provide high-quality RF connectors compatible with 0.086 inch micro coaxial cables, including customized solutions for OEM customers. Our experience as an RF connector OEM manufacturer allows us to support various application requirements with reliable production capability and engineering support.

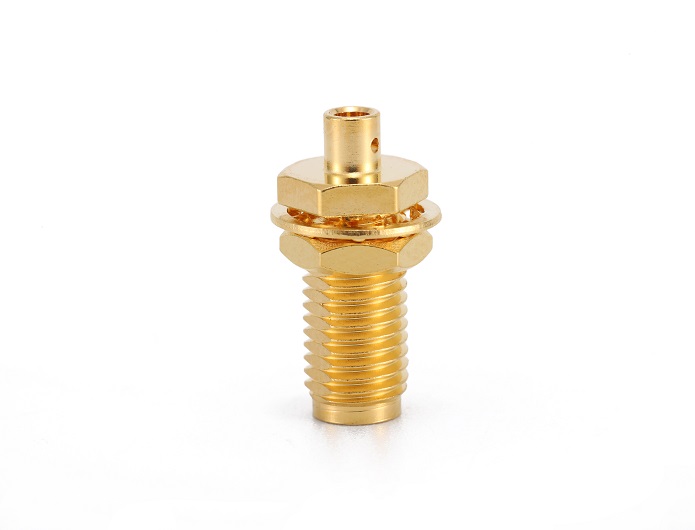

SMA female(Jack) bulkhead RF connector for 086 cable

Teruilai P/N: SMA-KYB2Datesheet

RoHS Certificate: Compliant

Key Features of SMA Female Bulkhead RF Connector for 0.086 Cable

1. Designed for 0.086 Inch Micro Coaxial Cable

This SMA connector for 0.086 cable is specially designed for small-diameter coaxial cable assemblies, providing accurate cable termination and stable RF signal transmission. It is compatible with 0.086 inch cable and similar micro coaxial cable applications, making it suitable for compact RF devices and high-density electronic systems.

2. Reliable SMA Female Bulkhead Mounting Structure

The SMA Female Bulkhead RF Connector adopts a panel mounting design that allows secure installation through equipment housings, chassis, and RF modules. The bulkhead structure provides excellent mechanical stability, easy integration, and reliable connection performance in applications requiring a fixed external RF interface.

3. Standard 50 Ohm Impedance for Stable RF Performance

Designed as a 50 Ohm SMA female connector, this RF coaxial connector ensures excellent impedance matching and consistent signal transmission. The standard 50 Ohm design helps minimize signal reflection and maintain stable electrical performance in wireless communication, microwave systems, and RF testing equipment.

4. Precision SMA Female Jack Interface

The SMA female jack interface features a threaded coupling structure that provides secure mating and excellent mechanical durability. With precision machining and reliable contact performance, this connector supports repeated connections while maintaining stable RF characteristics and low signal loss.

5. Compact Design for Space-Limited Applications

The compact structure of this SMA bulkhead connector makes it ideal for applications where installation space is limited. Its small size and reliable performance allow easy integration into RF modules, communication devices, antenna systems, and other compact electronic equipment.

6. Excellent High-Frequency Signal Transmission

This SMA female bulkhead connector for 086 cable supports high-frequency RF applications with stable electrical characteristics. It provides reliable signal transmission for microwave devices, RF measurement systems, and communication equipment requiring consistent performance.

7. Durable Construction and Long Service Life

Manufactured with high-quality materials and precision processing technology, this SMA connector provides excellent mechanical strength and environmental durability. The robust construction ensures reliable operation under demanding conditions with extended service life.

8. Custom RF Connector Solutions Available

As an experienced SMA bulkhead connector manufacturer, we provide customized solutions based on different customer requirements, including cable compatibility, connector dimensions, plating options, and OEM production services. Our custom SMA connector supplier capability helps customers develop reliable RF connection solutions for specific applications.

FAQ About SMA Female Bulkhead RF Connector

What is an SMA Female Bulkhead RF Connector?

An SMA Female Bulkhead RF Connector is a panel-mounted coaxial connector featuring an SMA female interface and bulkhead mounting structure for reliable RF signal connections.

What cable is compatible with this SMA connector?

This connector is designed for 0.086 cable applications and is compatible with small-diameter coaxial cables such as RG405 cable.

What is the impedance of this SMA connector?

This product is a standard 50 Ohm SMA female connector, which is widely used in RF and microwave applications requiring impedance matching.

What applications use SMA bulkhead connectors?

SMA bulkhead connectors are commonly used in wireless communication systems, microwave equipment, antenna assemblies, and RF testing instruments.

Can you provide customized SMA connectors?

Yes. As a professional custom SMA connector supplier, we provide customized SMA connector designs, cable matching solutions, and OEM manufacturing services.
