RF Coaxial Connectors · SMA

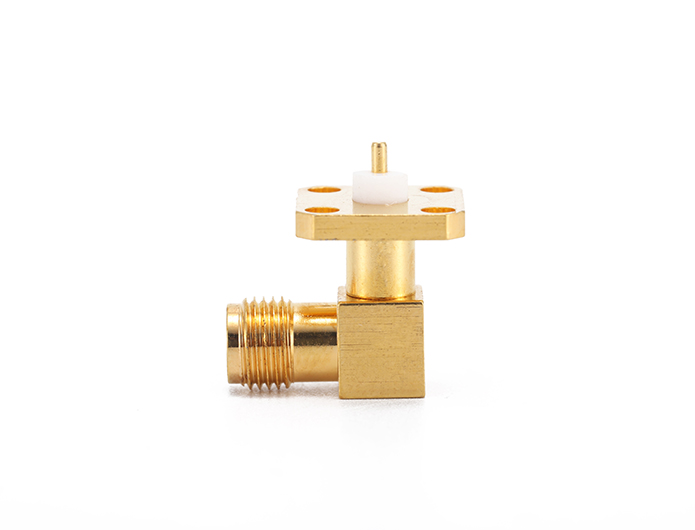

SMA Female right angle 4 Holes Flange RF Connector
Model: SMA-KWFD108
Product Introduction
SMA is one kind of coaxial precision connectors up to 18GHZ and some versions can be extended to 27GHZ. Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.
Detailed Information

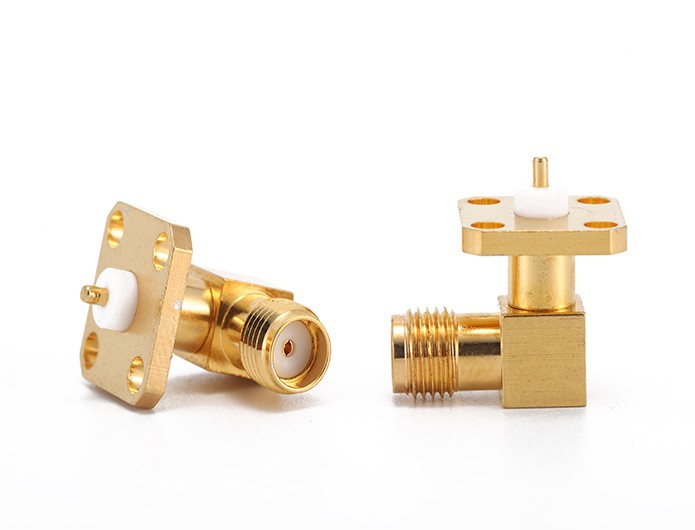

SMA Female right angle 4 Holes Flange RF Connectors
Teruilai P/N: SMA-KWFD108 Datasheet
RoHS certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Dielectric withstanding voltage | 1000V(volts RMS) | |
| Center contact resistance | ≤3MΩ | |
| Outer contact resistance | ≤2.5MΩ | |
| Insulation resistance | ≥5000MΩ | |
| Enviromental & Mechanical | Requirments | |
| Temperature range | -45℃ ~ 85℃ | |
| RoHs Compliant | ||
| Durability | >500 cycles | |
| Material & plating | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Insulators | Teflon | |
| Contact Pin | Beryllium-copper | Gold-plated |
