RF Coaxial Connectors · N

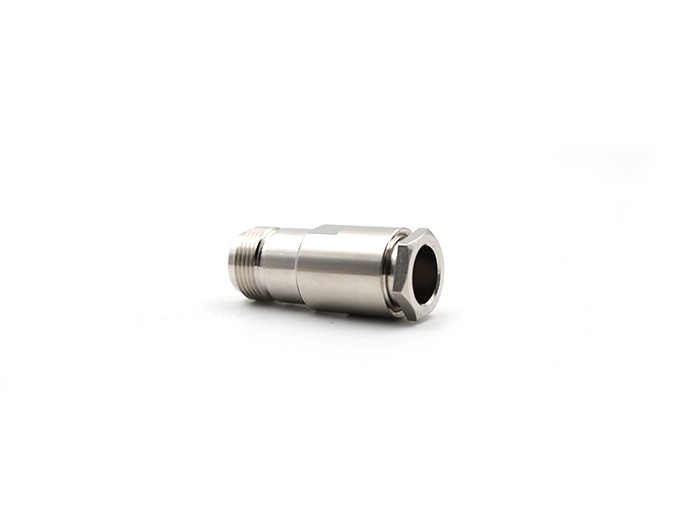

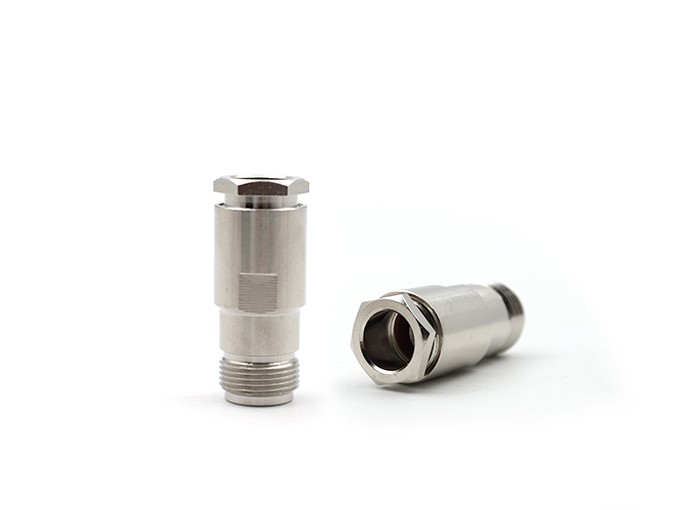

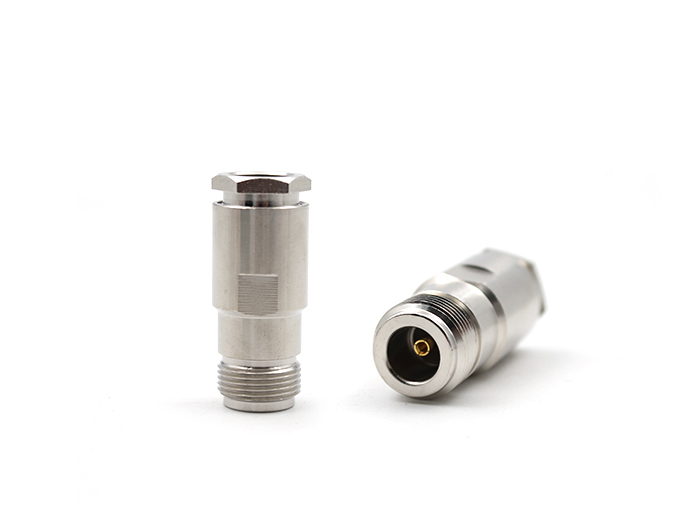

RF connector N female clamp for 8D-FB Cable
Model: N-K8D-FBA
Product Introduction
Micro RF Coaxial Connectors is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. Micro RF Coaxial Connectors have a great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
Detailed Information
RF connector N female clamp for 8D-FB Cable
Teruilai P/N: N-K8D-FBA
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-11GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.0mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | brass | Nickel-plated |
| Pin contacts | brass | Gold plated |
| Insulators | PTFE | |
