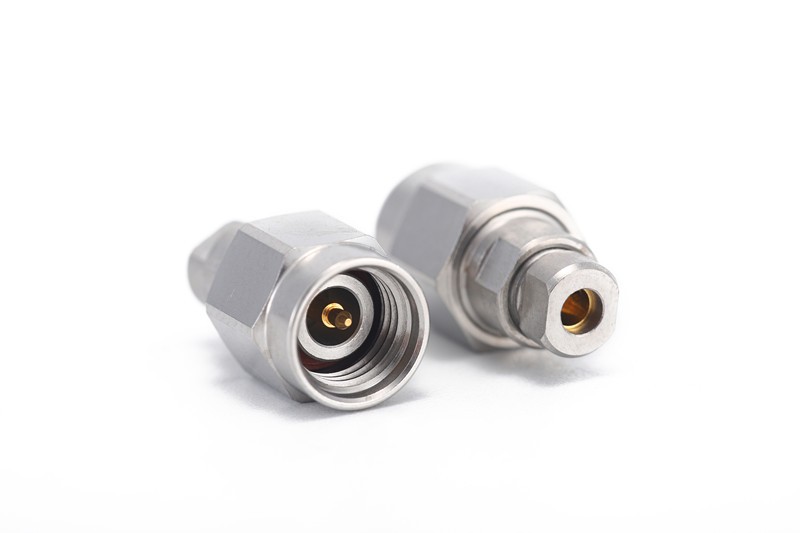

2.92mm Male Precision RF Connector for Gore3506 Cable (TERUILAI P/N: 2.92-J3506AG) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Ultra-high Frequency Millimeter-wave Performance

• Supports DC-40GHz full-band millimeter-wave transmission, covering mainstream 5G/6G and high-frequency test application bands

• Characteristic impedance of 50Ω, Voltage Standing Wave Ratio (VSWR) ≤1.20

• Excellent phase consistency and low insertion loss, ensuring high-precision signal transmission in millimeter-wave systems

• Precision-machined interface dimensions guarantee perfect impedance matching throughout the entire frequency range

2.2 Optimized for Gore3506 Low-loss Cable

• Specially designed interface structure provides seamless and reliable connection with Gore3506 low-loss coaxial cables

• Ensures consistent impedance transition and minimal signal reflection at the connector-cable interface

• Maximizes the performance advantages of Gore3506 cables in high-frequency applications

2.3 Rugged Stainless Steel Construction

• Body made of high-quality SUS303 stainless steel with passivation treatment

• Offers superior mechanical strength, corrosion resistance and wear resistance

• Ideal for long-term use in harsh industrial, aerospace and military environments

2.4 Low-loss Electrical Transmission

• Center conductor contact resistance ≤4.0mΩ, outer conductor contact resistance ≤2.0mΩ, achieving minimal signal attenuation

• Dielectric withstanding voltage ≥750V and insulation resistance ≥3000MΩ, ensuring safe and stable electrical operation

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.5 High Durability & Environmental Adaptability

• Durability of ≥500 mating cycles, suitable for frequent plugging and unplugging in test and maintenance scenarios

• Operating temperature range: -45℃ ~ +85℃, adapting to various laboratory and industrial working conditions
