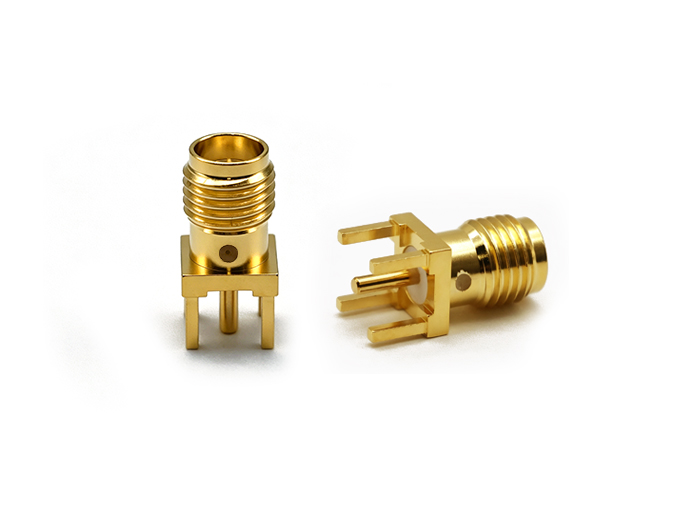

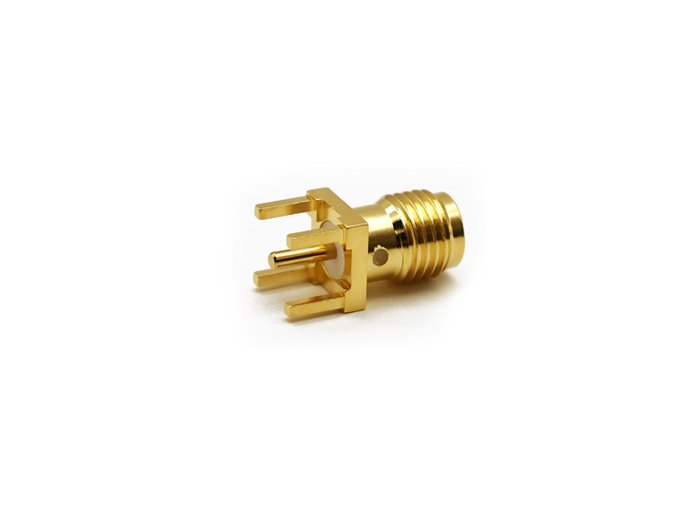

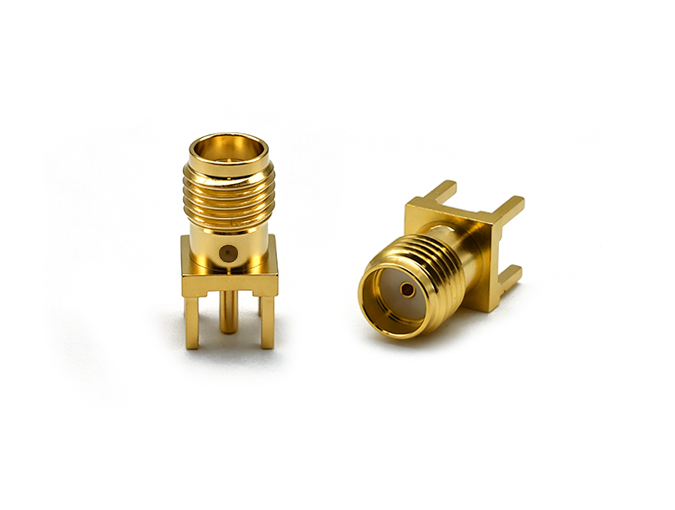

RF Connector SMA Female PCB Mount
Model: SMA-KHD
Product Introduction
Military Series SMA female connector Straight PCB Mount is one kind of SMA Microwave Connectors up to 18GHZ and some versions can be extended to 27GHZ. SMA Microwave Connectors advantage is small size, high mechanical strength, high durability, and optimum electrical properties. They can be widely used in the field of micro-wave communication, spaceflight, and navigation, instrument and etc.
Detailed Information
RF Connector SMA female connector PCB Mount
Teruilai P/N: SMA-KHD Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.25:1 | |
| .Center conductor | ≦3.0mΩ | |
| .Outer conductor | ≦2.5mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold-plated |
| Pin contacts | Beryllium-Copper | Gold-plated |
| Insulators | Teflon | |
