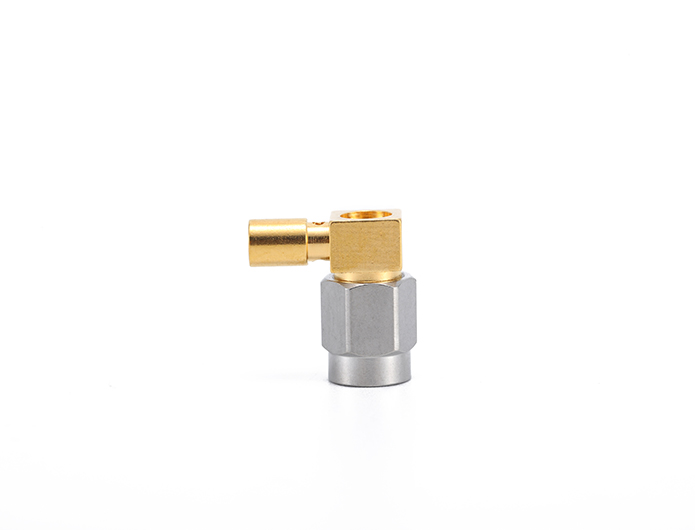

SMA Male Right Angle RF Coaxial Connector for 086 Cable (Stainless Steel Nut) (TERUILAI P/N: SMA-JWB2CG) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Space-saving Right Angle Design

• 90-degree right angle structure effectively saves vertical space on equipment and PCB boards

• Optimizes cable routing in tight spaces and enables compact system design

• Ideal for high-density integration and space-constrained electronic devices

2.2 Enhanced Stainless Steel Construction

• Equipped with a high-quality stainless steel nut with passivation treatment

• Provides superior mechanical strength, wear resistance and corrosion resistance

• Ensures long-term reliable connection even under frequent plugging and unplugging conditions

2.3 Excellent High-Frequency Performance

• Supports 0-18GHz ultra-wide operating frequency range with a 50Ω characteristic impedance

• Exceptionally low Voltage Standing Wave Ratio (VSWR) ≤1.20, ensuring perfect impedance matching

• Delivers consistent and stable signal transmission across the entire frequency range

2.4 Low-loss Gold-Plated Construction

• Connector body and contact pins made of high-quality brass with full gold plating

• Provides excellent electrical conductivity and minimizes signal transmission loss

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.5 Wide Temperature Adaptability & High Durability

• Ultra-wide operating temperature range: -45℃ ~ +125℃, adapting to various extreme working environments

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• Robust one-piece construction ensures long-term mechanical and electrical stability
