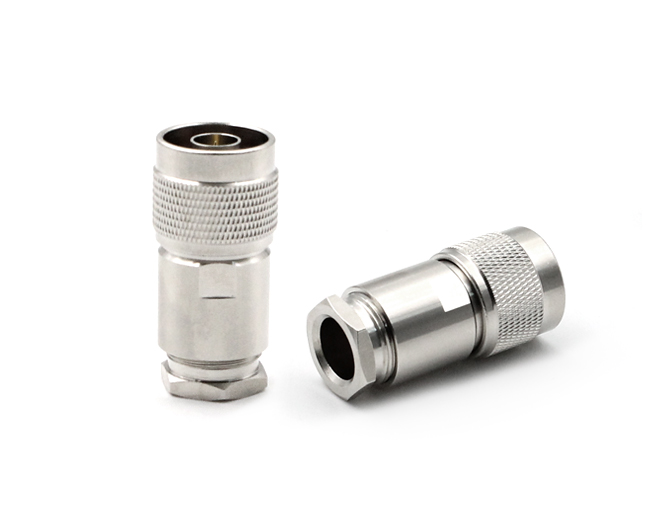

N Male Connector For LMR400 cable push Fit Type
Model: N-J400B
Product Introduction
TYPE N are very popular screw-coupling middle-power coaxial connectors, which has the excellent peformance of greet vbration-proof,high reliability, superior electrical and mechanical properties, They are widely used for communication applications where tration resistance and harsh environment is required. The interface mating dimensions and technical characterstics are according to the standard MIL-C-39012 IEC60169-16AND CECC22210
Detailed Information
N Male Connector For LMR400 cable push Fit Type
Teruilai P/N: N-J400B Datasheet
| Electrical data | Requirments | |
| Frequency range | 0-6GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | 1.30:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ ~+125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Pin contacts | Brass | Gold |
| Body | Brass | Nickel plated |
| Coupling nut | Brass | Nickel plated |
| Insulators | PTFE | |
