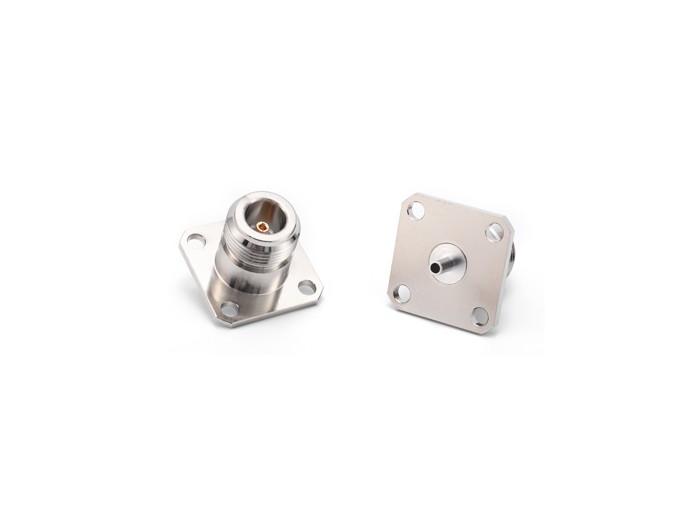

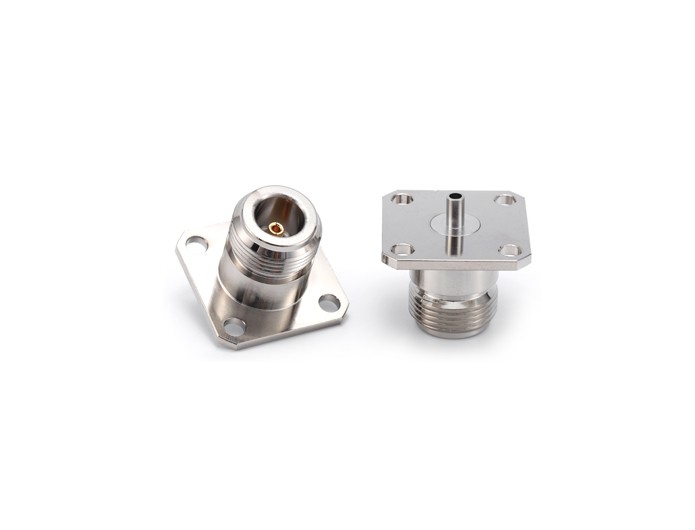

N Female 4 Holes Flange for 086 Cable RF Coaxial Connector
Model: N-KFB2FB
Product Introduction
N connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.
Detailed Information

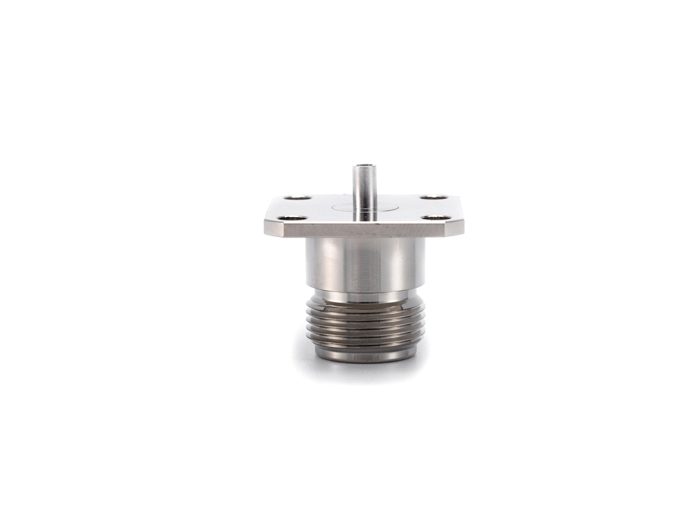

N Female 4 Holes Flange for 086 Cable RF Coaxial Connector
Teruilai P/N: N-KFB2FB Outline drawing.pdf
RoHS Certificate: Compliant
| Electrical | Requirments | |
| Impedence | 50Ω | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1500V(volts RMS) | |
| Center contact resistance | ≦1mΩ | |
| Outer contact resistance | ≦0.2mΩ | |
| Insulation resistance | ≧5000MΩ | |
| VSWR | 1.3:1 | |
| Environmental | Requirments | |
| Temperature range | -45℃ - 125℃ | |
| RoHs Compliant | ||
| Durability | >500 cycles | |
| Material & Finish | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel Plated |
| Insulators | Teflon | |
| Contact Pin | Bronze | Gold Plated |
