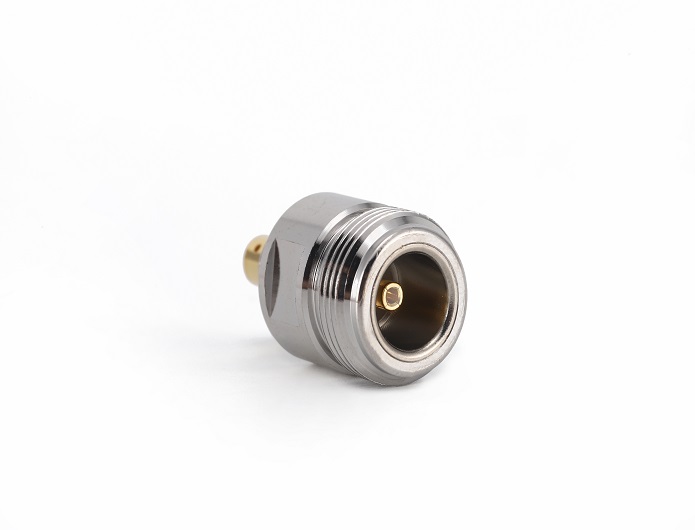

N female bulkhead for 141 cable RF Coaxial Connector
Model: N-KYB3E
Product Introduction
N connector is one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. It has great performance of vibration-proof, high reliablity and super electrical properties, widely used in communication applications.Concerning the cable links, clamp, crimp and solder types are all available.
Detailed Information
N female bulkhead for 141 cable RF Coaxial Connector
Teruilai P/N: N-KYB3E Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-11GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.0mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 155℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | brass | Nickel-plated |
| Pin contacts | bronze | sliver plated |
| Insulators | teflon | |
| Nut | Brass | nickel-plated |
| Gasket | silicon rubber | |
| washer | brass | nickel-plated |
