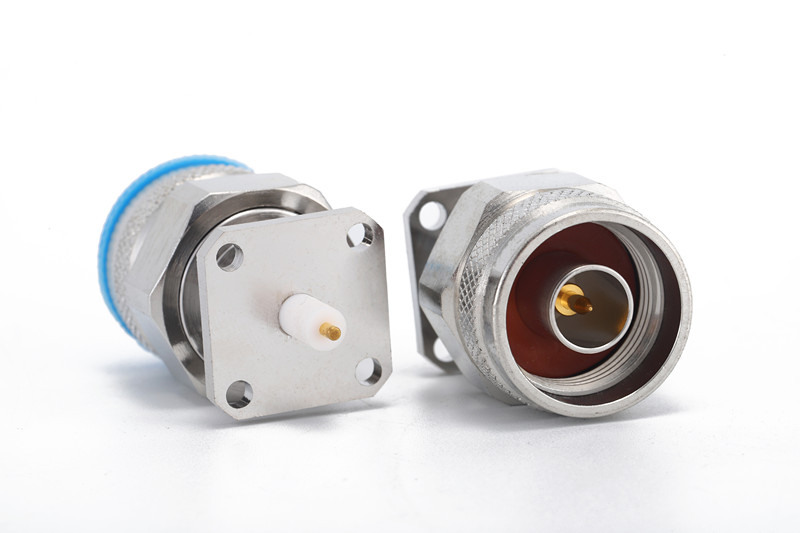

N male 4 holes flange Connector for Terminal
Model: N-JFD5
Product Introduction
N RF Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. N RF Connectors have a great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
Detailed Information
N male 4 holes flange Connector for Terminal
Teruilai P/N: N-JFD5 Datesheet
RoHS Certificate: Compliant
N RF Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. N RF Connectors have a great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦6.0mΩ | |
| .Outer conductor | ≦2.0mΩ | |
| VSWR | ≦1.15 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to 155℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | brass | Tri-metal-plated |
| Pin contacts | Phosphor bronze | sliver plated |
| Insulators | teflon | |
| Gasket | Silicon rubber | |
| C-ring | phosphor bronze | Natural |
