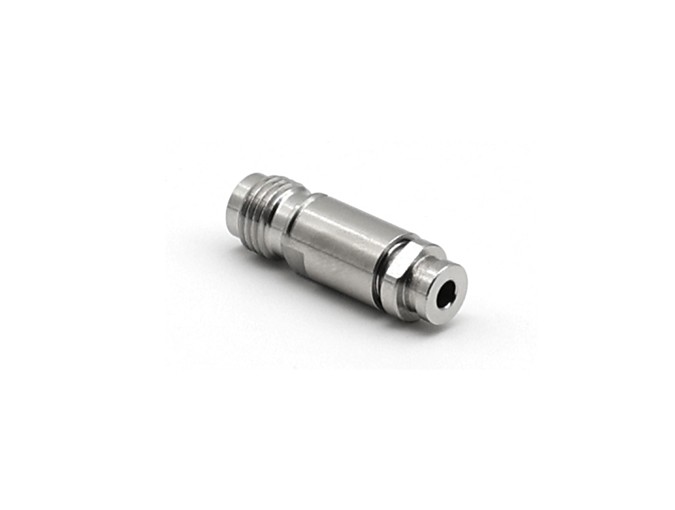

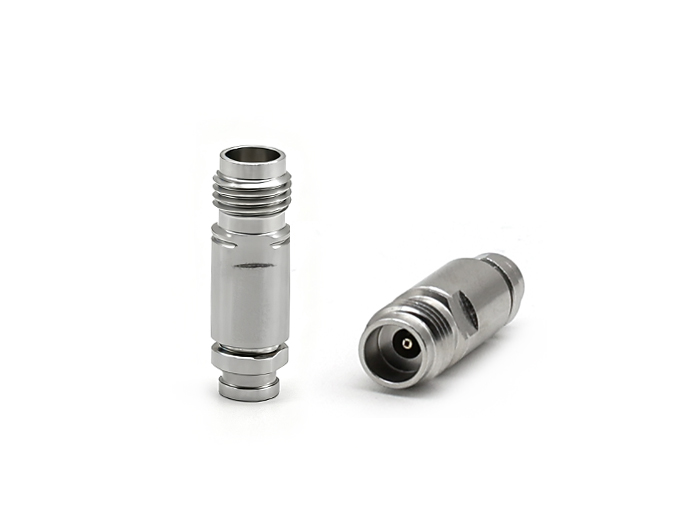

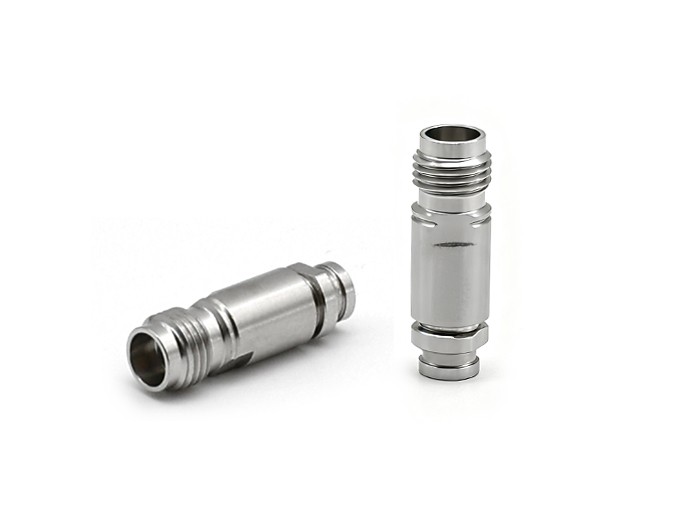

2.4mm Female for Gore TLA220/CXN3506 cable RF Coaxial Connector
Model: 2.4-K3506G
Product Introduction
Our 2.4 mm sma connector and 2.4 mm rf connector are exceptional choices for achieving reliable and high-performance RF connections. With their secure coupling mechanisms, low signal loss, and excellent electrical performance, these 2.4 mm female connectors are trusted solutions in the industry. As a leading RF Coaxial Connectors supplier , we are proud to offer these top-quality connectors to our valued customers and welcome inquiries for distribution partnerships. Experience superior connectivity and exceptional electrical performance with our 2.4 mm female connector and 2.4 mm rf connector. Contact us today to explore the possibilities for your RF applications.
Detailed Information
2.4mm Female for Gore TLA220/CXN3506 cable RF Coaxial Connector
Teruilai P/N:2.4-K3506G
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-50GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| VSWR | 1.3:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
