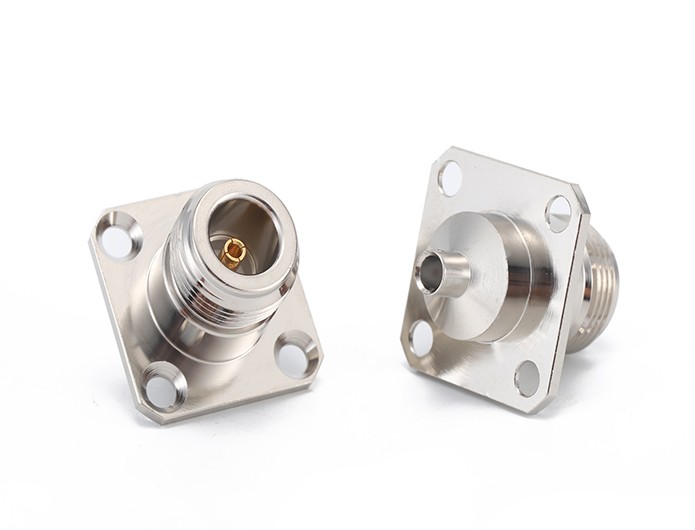

N female flange Connector for 141 cable
Model: N-KFB3B
Product Introduction
Micro RF Coaxial Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. Micro RF Coaxial Connectors have a great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
Detailed Information
N female flange Connector for 141 cable
Teruilai P/N: N-KFB3B Outline Drawing.pdf
RoHS Certificate: Compliant
Micro RF Coaxial Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. Micro RF Coaxial Connectors have a great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
| Electrical data | Requirments | |
| Characteristic impedance | 50Ω | |
| Frequency range | DC-6GHZ | |
| Dieletric withstanding voltage | 1500V | |
| .Center conductor | ≦1.0mΩ | |
| .Outer conductor | ≦0.2mΩ | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.20 | |
| Environmental&Mechanical data | Requirments | |
| Temperature range | -45℃ to 125℃ | |
| RoHs Complaint | ||
| Durability (matings) | >500 cycles | |
| Material&Finish data | Requirments | |
| Connector parts | Material | Plating |
| Body | brass | Nickle plated |
| Insulator | Teflon | |
| Conatct Pin | Bronze | Gold plated |
