RF Coaxial Connectors · N

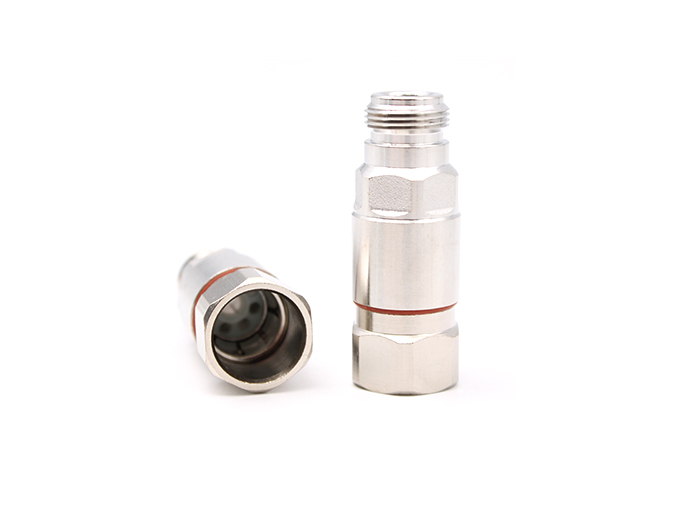

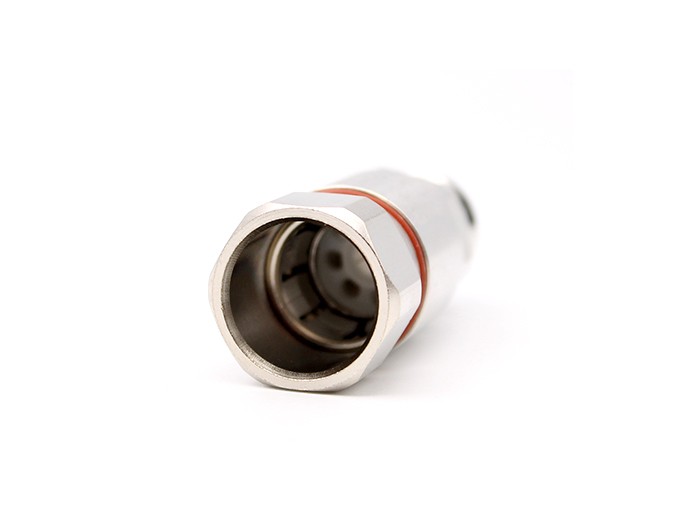

RF connector N-type Female connector with 1/2 cable clamp
Model: N-K1/2A
Product Introduction
Micro RF Coaxial Connectors are one kind of screw-coupling middle-power coaxial connector up to 11GHZ and some versions can be extended to 18GHZ. Micro RF Coaxial Connectors have great performance of vibration-proof, high reliability and superb electrical properties, widely used in communication applications. Concerning the cable links, clamp, crimp, and solder types are all available.
Detailed Information
RF connector N-type Female connector with 1/2 cable clamp
Teruilai P/N: N-K1/2A Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-3GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.0mΩ | |
| .Outer conductor | ≦1.0mΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ ~+165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Pin contacts | Bronze | Gold |
| Outer conductor | Brass | Nickel |
| Gaskets | Silicone rubber | |
| Insulators | PTFE | |
