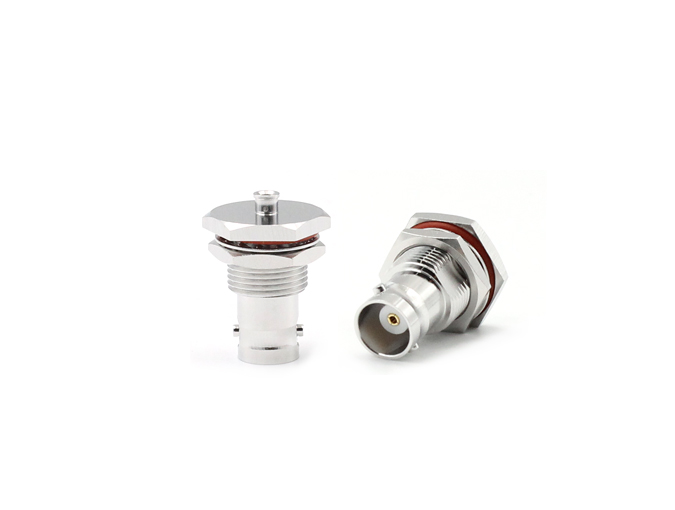

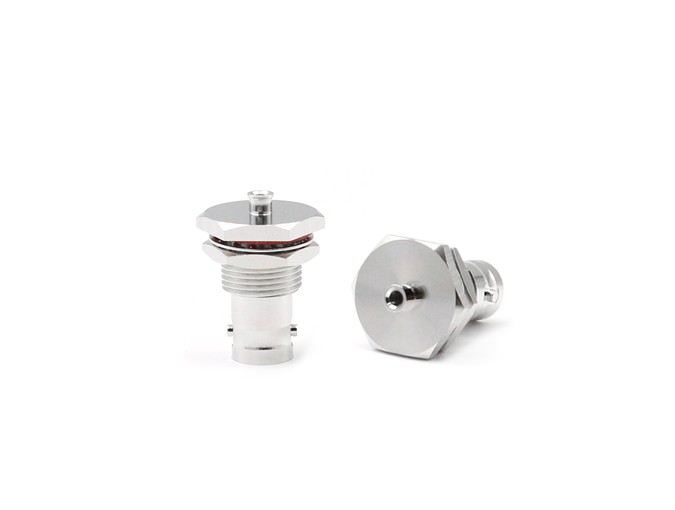

BNC Female Bulkhead Connector for 086/RG405 Cable (TERUILAI P/N: BNC-KYB2-FA) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Quick Bayonet Connection Mechanism

• Unique bayonet coupling design allows tool-free one-step insertion and removal in seconds

• Significantly improves installation and maintenance efficiency, ideal for frequent operation scenarios

• Provides secure mechanical locking and stable electrical connection after engagement

2.2 Convenient Bulkhead Panel Mount

• Bulkhead mounting structure enables fixed installation on equipment enclosures or partition boards

• Realizes reliable signal transmission between internal circuit boards and external RF cables

• Compact design saves valuable equipment space and supports high-density layout

2.3 Ultra-low Loss Electrical Performance

• Supports 0-4GHz operating frequency range with a characteristic impedance of 50Ω

• Exceptionally low contact resistance: center conductor ≤1.5mΩ, outer conductor ≤0.2mΩ, ensuring minimal signal attenuation

• Dielectric withstanding voltage of 1000V and insulation resistance ≥5000MΩ, guaranteeing safe and stable operation

• All-metal shielding structure effectively suppresses electromagnetic interference and ensures signal integrity

2.4 Optimized Cable Compatibility

• Precision-machined interface perfectly matches 086 and RG405 coaxial cables

• Ensures consistent impedance matching and stable signal transmission across the entire frequency range

2.5 Durable & Wide Temperature Adaptability

• Durability of ≥500 mating cycles, suitable for long-term repeated use

• Operating temperature range: -45℃ ~ +125℃, adapting to various industrial and commercial working environments

• High-quality nickel plating on brass body provides excellent corrosion and oxidation resistance
