RF Coaxial Connectors · BNC

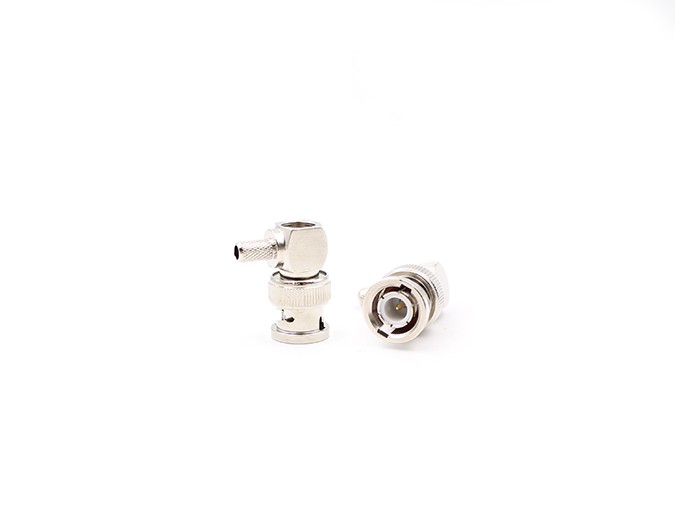

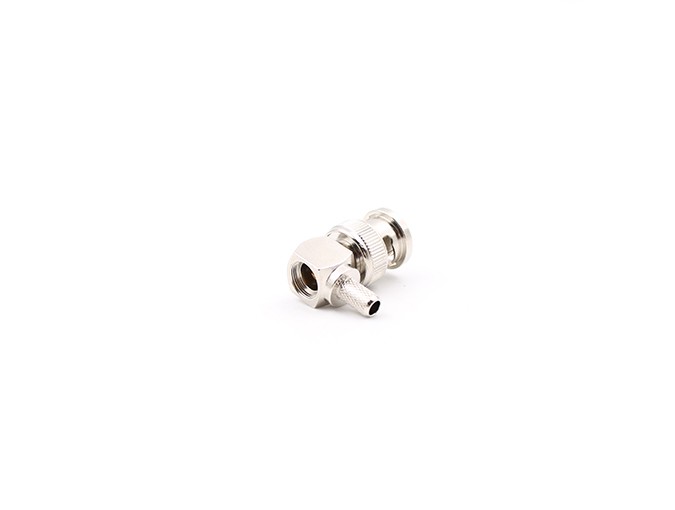

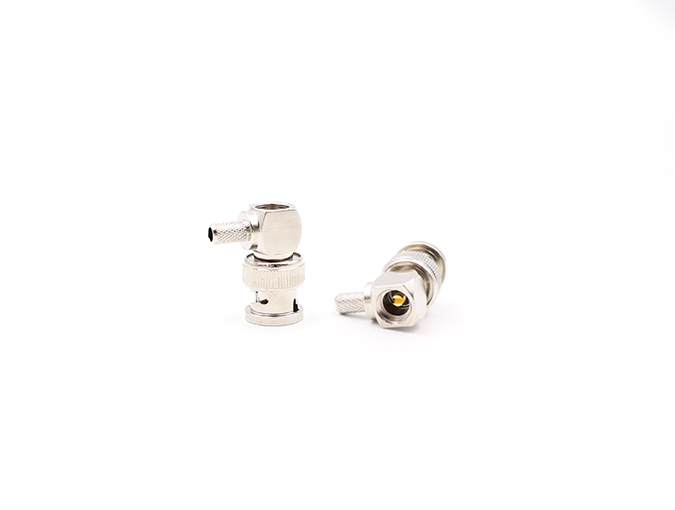

RF Connector BNC Male Right Angle for 5D-FB Cable Crimp
Model: BNC-JW5DY
Product Introduction
Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.
Detailed Information
RF Connector BNC Male Right Angle for 5D-FB Cable Crimp
Teruilai P/N: BNC-JW5DY
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-4GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦1.5mΩ | |
| .Outer conductor | ≦1mΩ | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to+125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel plated |
| Pin contacts | Brass | Gold |
| Insulators | teflon | |
