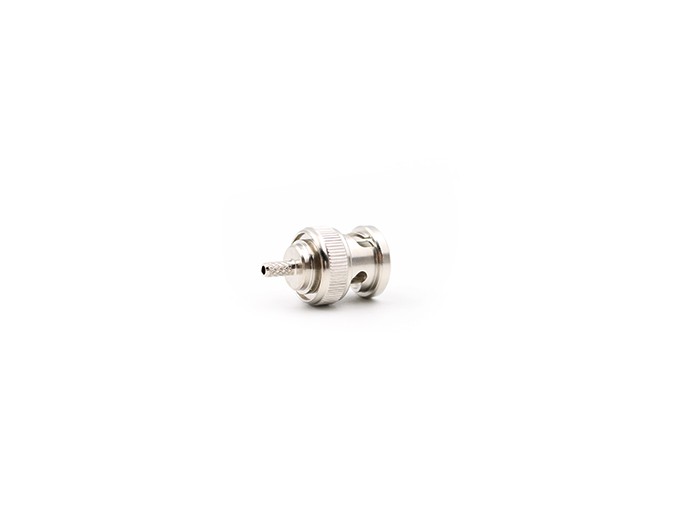

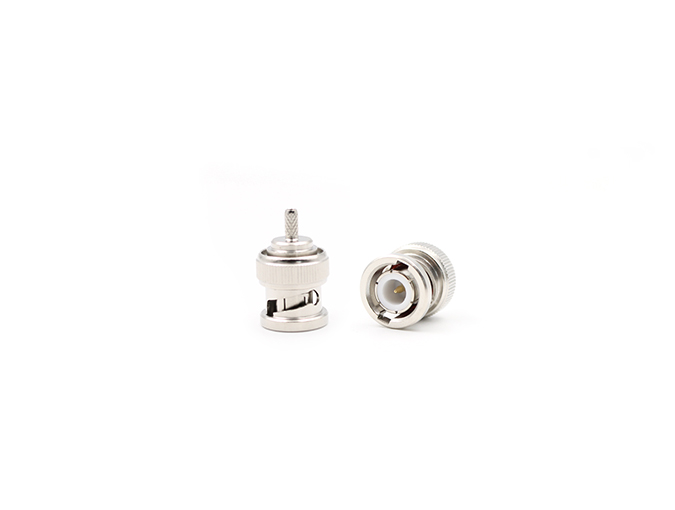

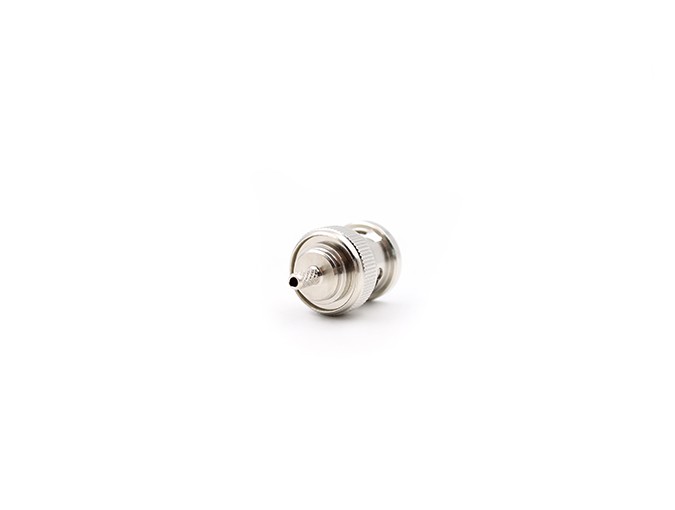

RF Connector BNC Male for RG316 Cable, Crimp
Model: BNC-J3Y-F
Product Introduction
Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.
Detailed Information
RF Connector BNC Male for RG316 Cable, Crimp
Teruilai P/N: BNC-J3Y-F Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4GHZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to 85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Nickel-plated |
| Pin contacts | Brass | Gold |
| Coupling nut | Brass | Gold |
| Insulators | teflon | |
