RF Coaxial Connectors · BNC

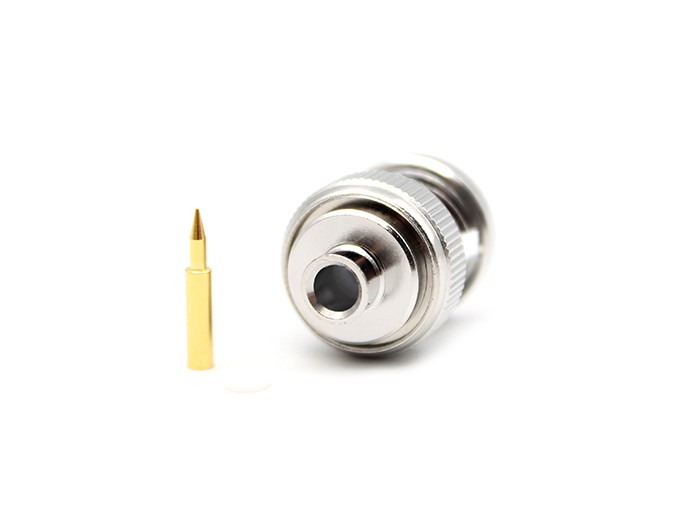

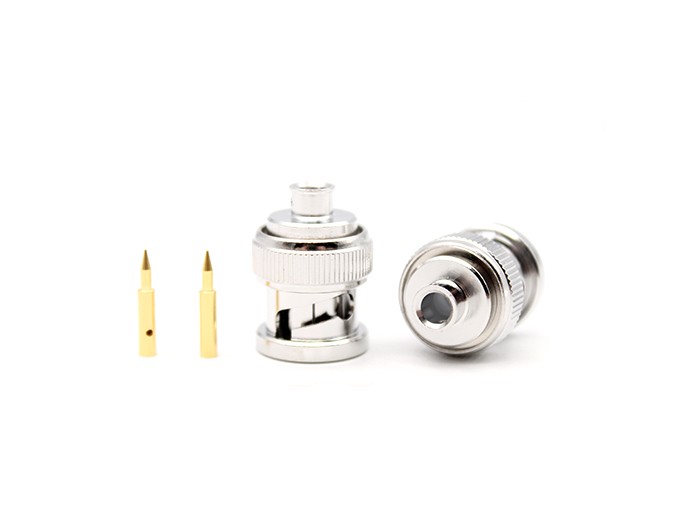

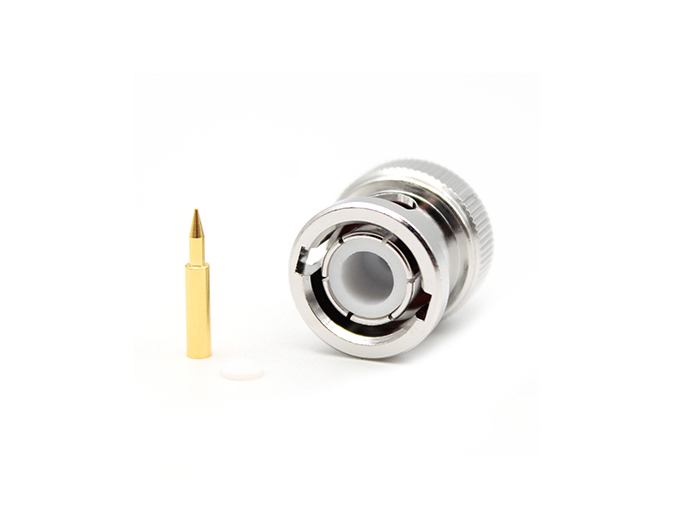

RF Connector BNC Male for RG141/RG402 Cable
Model: BNC-JB3-F
Product Introduction
Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.
Detailed Information
RF Connector BNC Male for RG141/RG402 Cable
Teruilai P/N: BNC-JB3-F Datesheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-4GHZ | |
| Dieletric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦3mΩ | |
| .Outer conductor | ≦2mΩ | |
| VSWR | ≦1.15+0.02F | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to+165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Barss | suco-plated |
| Pin contacts | Barss | gold-plated |
| Insulators | teflon | |
| Coupling nut | Barss | suco-plated |
