RF Coaxial Connectors · 2.92mm

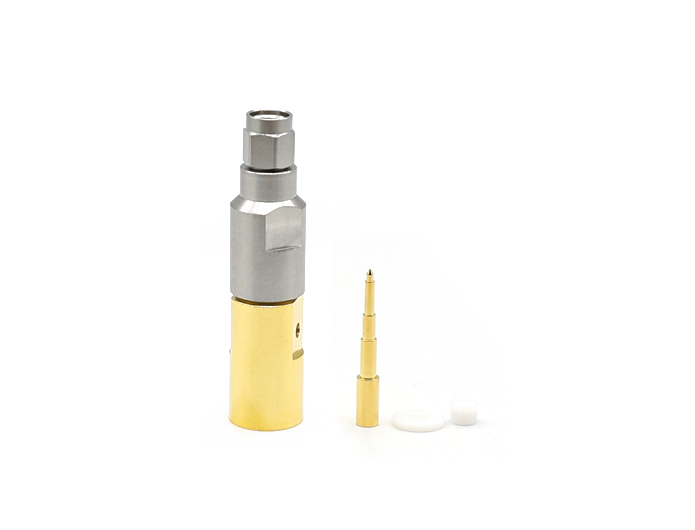

2.92 Male Connector for Cable TLC800KJ precision RF Connector
Model: 2.92-J-C800-KJ
Product Introduction
2.92mm Precision Microwave Connectors Panel Mount also named K connector, developed from series SMA connector. 2.92mm Precision Microwave Connectors Panel Mount has the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information
2.92 Male Connector for Cable TLC800KJ precision RF Connector
Teruilai P/N: 2.92-J-C800-KJ
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
