RF Coaxial Connectors · 2.92mm

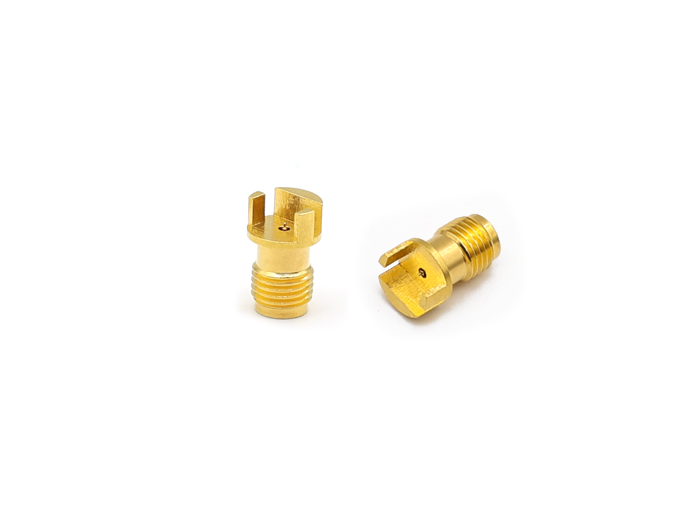

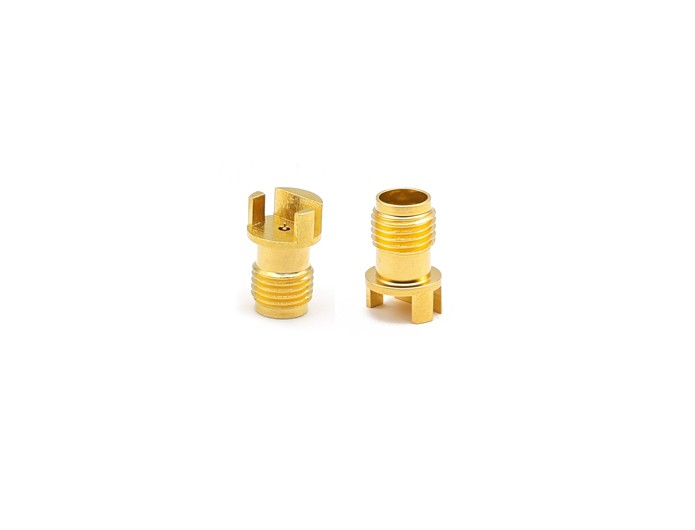

RF Connector 2.92mm Female PCB Mount
Model: 2.92-KHDC2
Product Introduction
2.92 mm male for rf connector also named K connector, developed from series SMA connector. 2.92mm Microwave Connectors have the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information
RF Connector 2.92mm Female PCB Mount
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Dielectric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦4.0mΩ | |
| .Outer conductor | ≦2.0mΩ | |
| VSWR | ≦1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel (Su303), passivated | |
| Pin contacts | Beryllium-Copper | gold-plated |
