RF Coaxial Connectors · 2.92mm

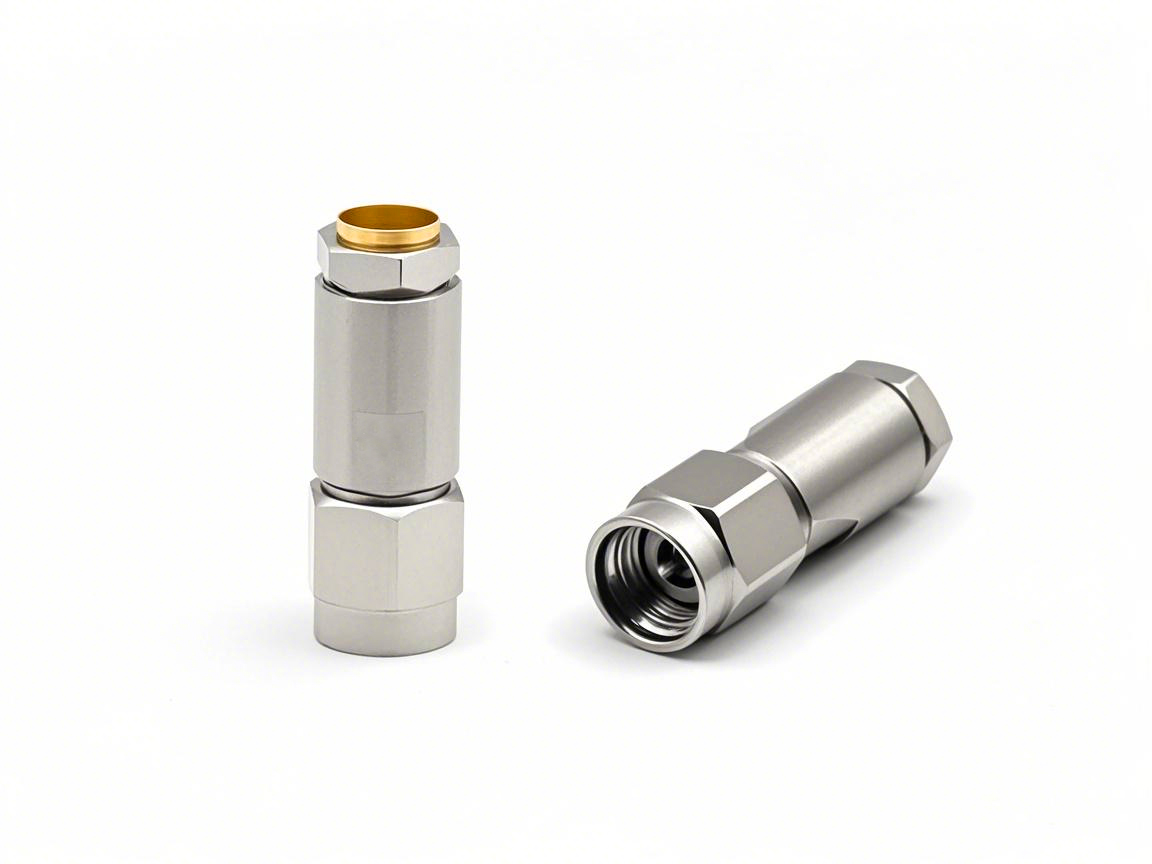

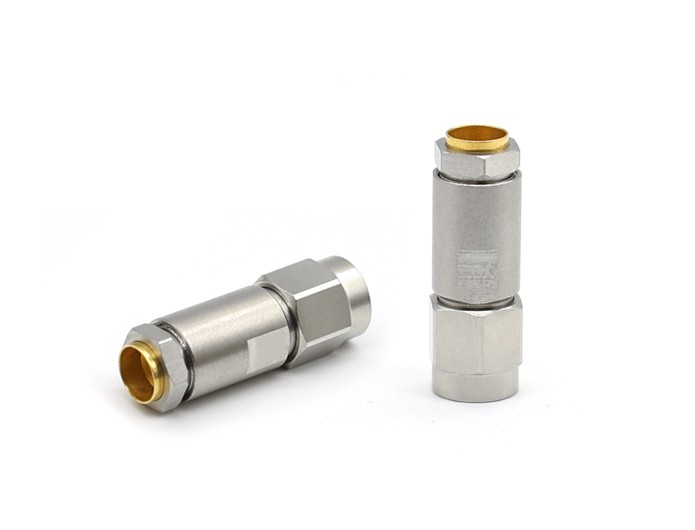

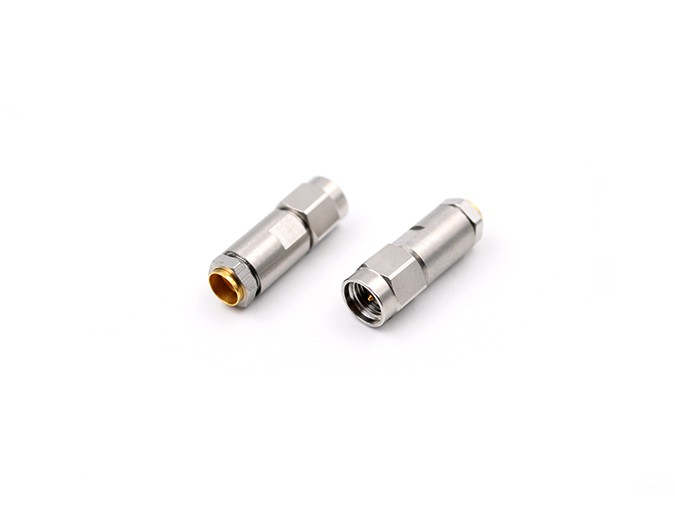

2.92mm male for TLA480/CXN3449 cable RF Coaxial Connector
Model: 2.92-J3449G
Product Introduction
2.92mm Precision Microwave Connectors Panel Mount also named K connector, developed from series SMA connector. 2.92mm Precision Microwave Connectors Panel Mount has the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information
2.92mm male for TLA480/CXN3449 cable RF Coaxial Connector
Teruilai P/N: 2.92-J3449G Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18GHZ | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +85℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
