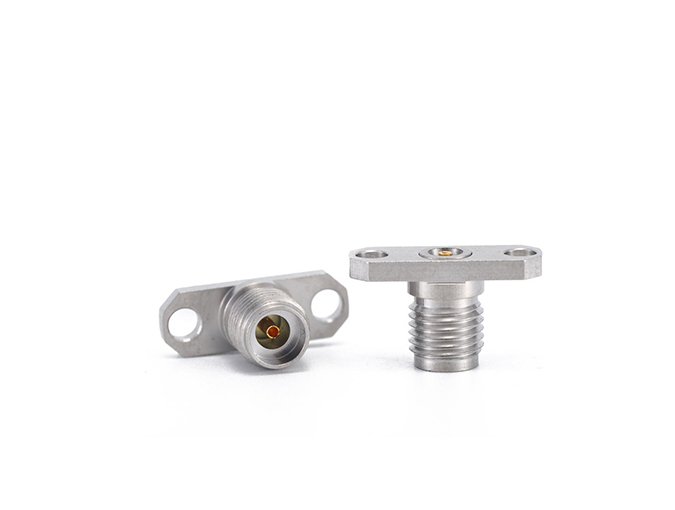

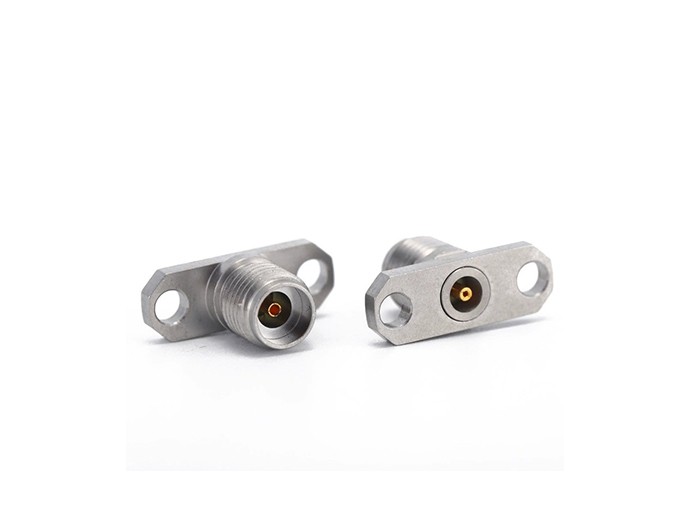

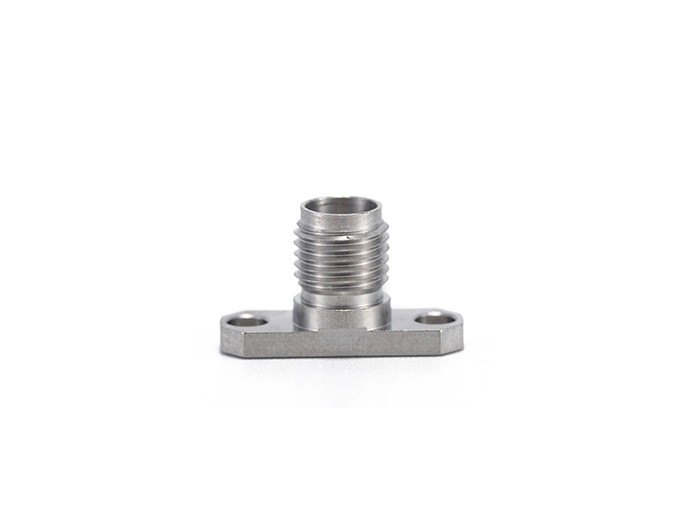

2.92mm Female Flange Panel Mount Connector with solder end
Model: 2.92-KFD0.5G
Product Introduction
The 2.92mm Precision Microwave Connectors Panel Mount, also known as K connector, is developed from the SMA panel mount connector series. Compared to a standard SMA flange connector, this 2.92mm version offers significant advantages including smaller size, lighter weight, higher frequency performance, and superior reliability. The 2.92mm Female Flange connector variant is particularly suitable for panel mounting applications where secure and repeatable connections are required. These precision connectors are widely used in modern precision measurement and microwave communication equipment, with a frequency range up to 40 GHz.
Detailed Information
2.92mm Female Flange with solder end
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-40GHZ | |
| Dieletric withstanding voltage | ≧750V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧3000MΩ | |
| VSWR | ≦1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -45℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium-Copper | Gold |
| Insulators | PEI | |
