RF Coaxial Connectors · 2.92mm

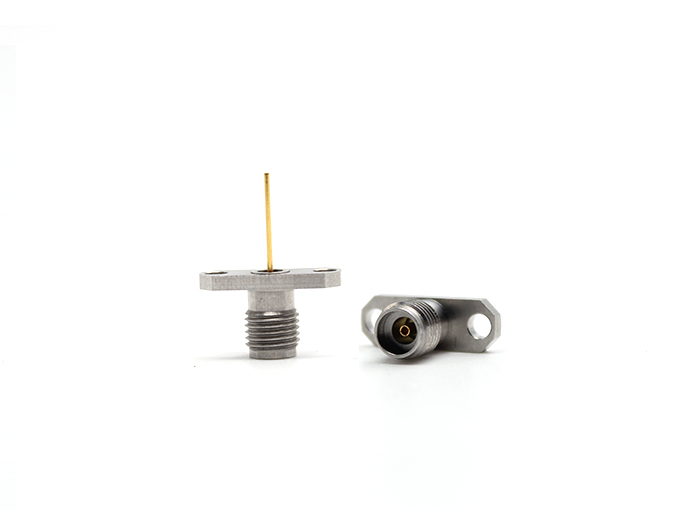

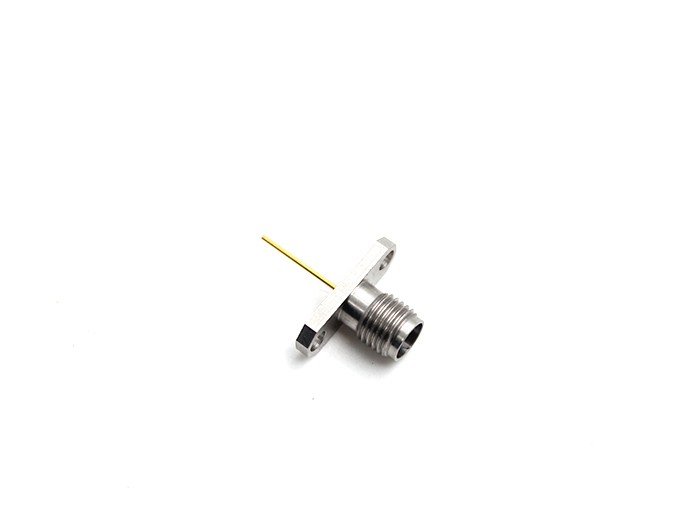

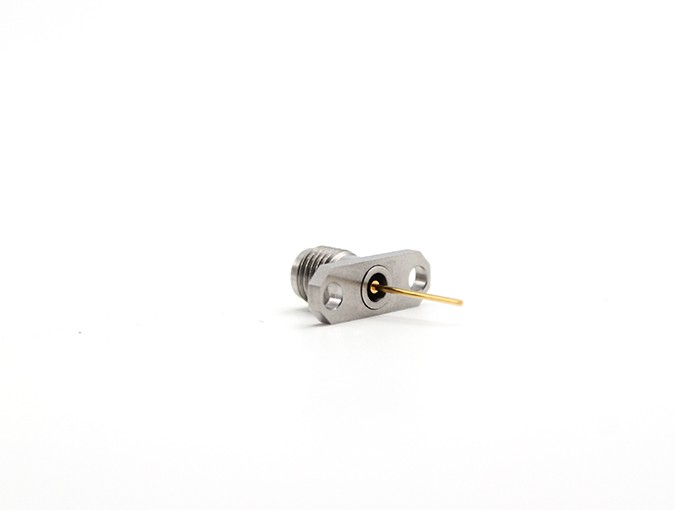

2.92mm Stainless steel Female Flange Mount
Model: 2.92-KFD0.64G
Product Introduction
2.92mm Precision Microwave Connectors have the advantages of small size, lightweight, high frequency, and super reliability, widely used in the modern precision measurement and microwave communication equipment. The frequency range can be up to 40Ghz.
Detailed Information
2.92mm Stainless steel Female Flange Mount
Teruilai P/N : 2.92-KFD0.64G Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-40GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | 1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
