RF Coaxial Connectors · 1.0mm
1.0mm Male for 3657 cable RF Connector
Model: 1.0-J3657G
Product Introduction
Detailed Information

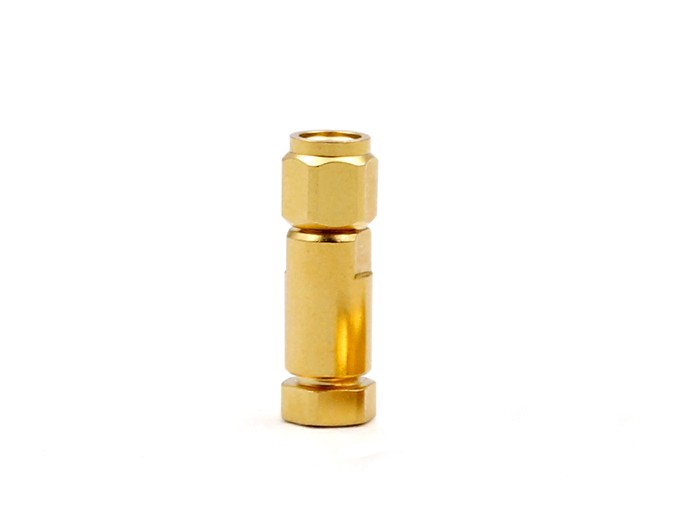

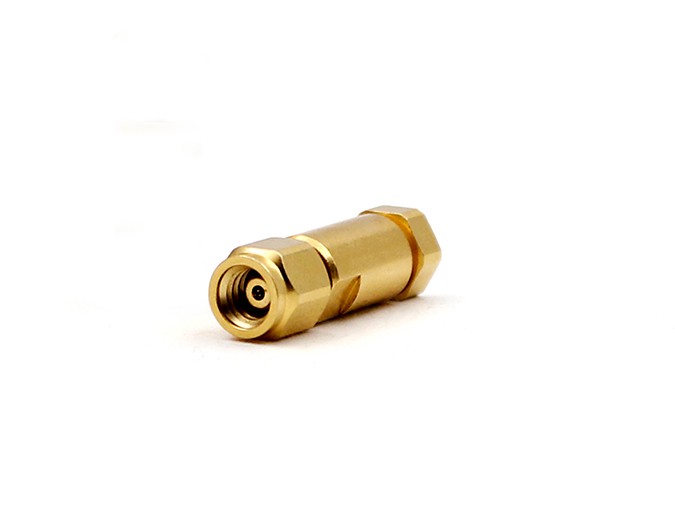

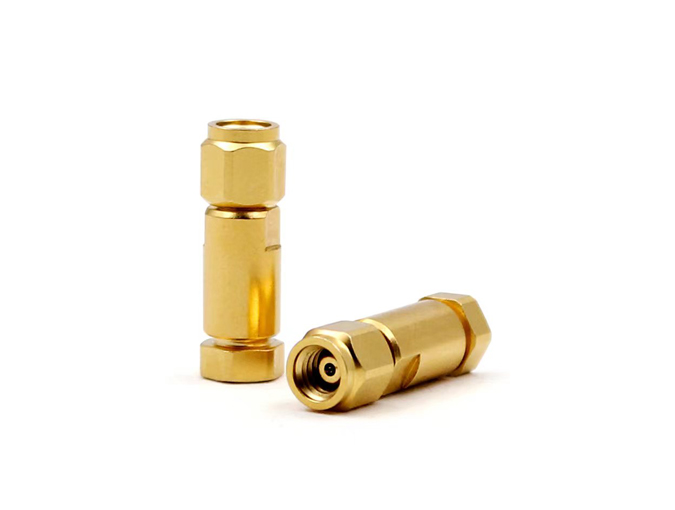

1.0mm Male for 3657 cable RF Connector
Teruilai P/N : 1.0-J3657G
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | 0-110GHZ | |
| Characteristic impedance | 50Ω | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -55℃ to +125℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Female center contacts | Beryllium-Copper | Gold-plated |
| Insulators | PEI | |
