Dust Cap

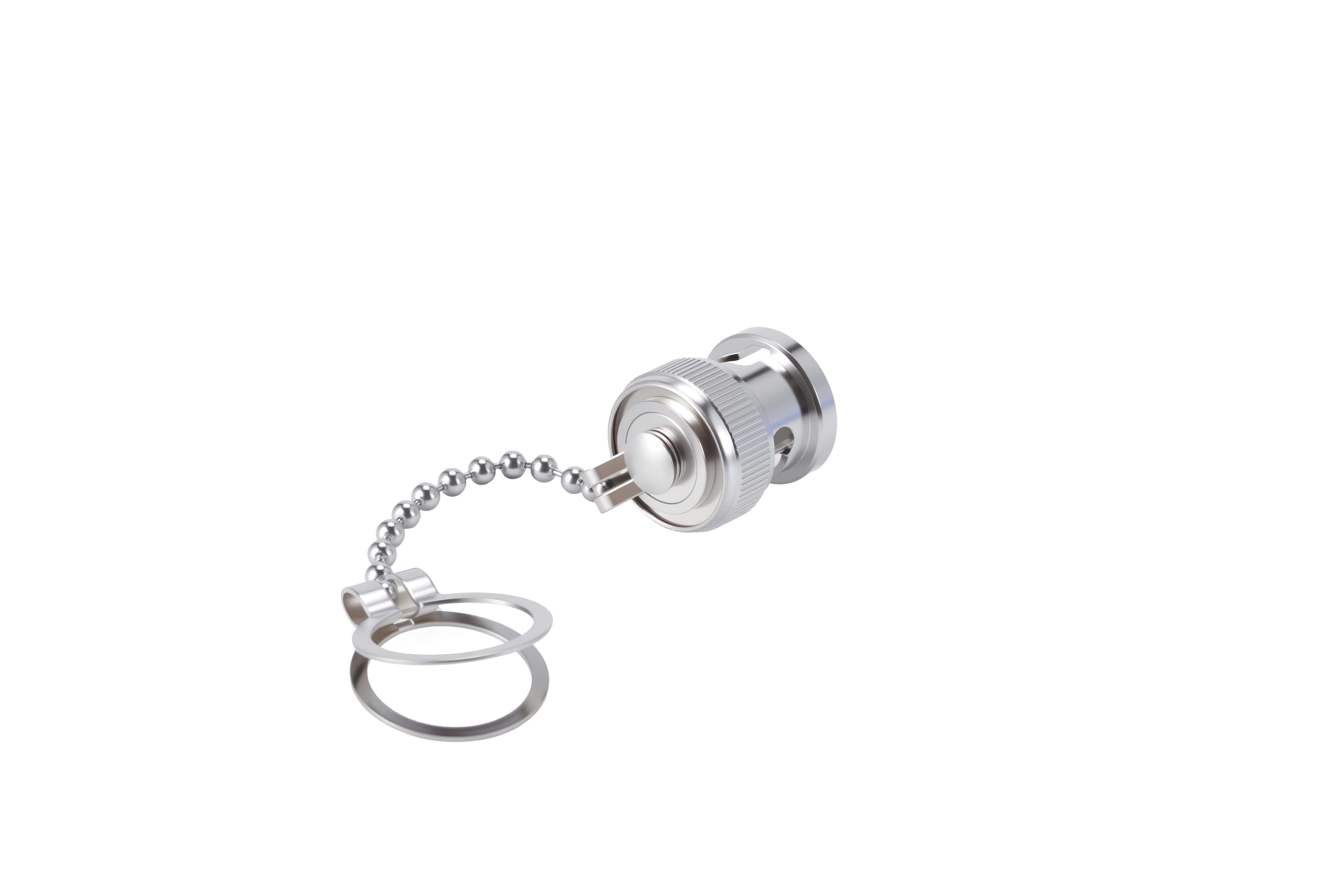

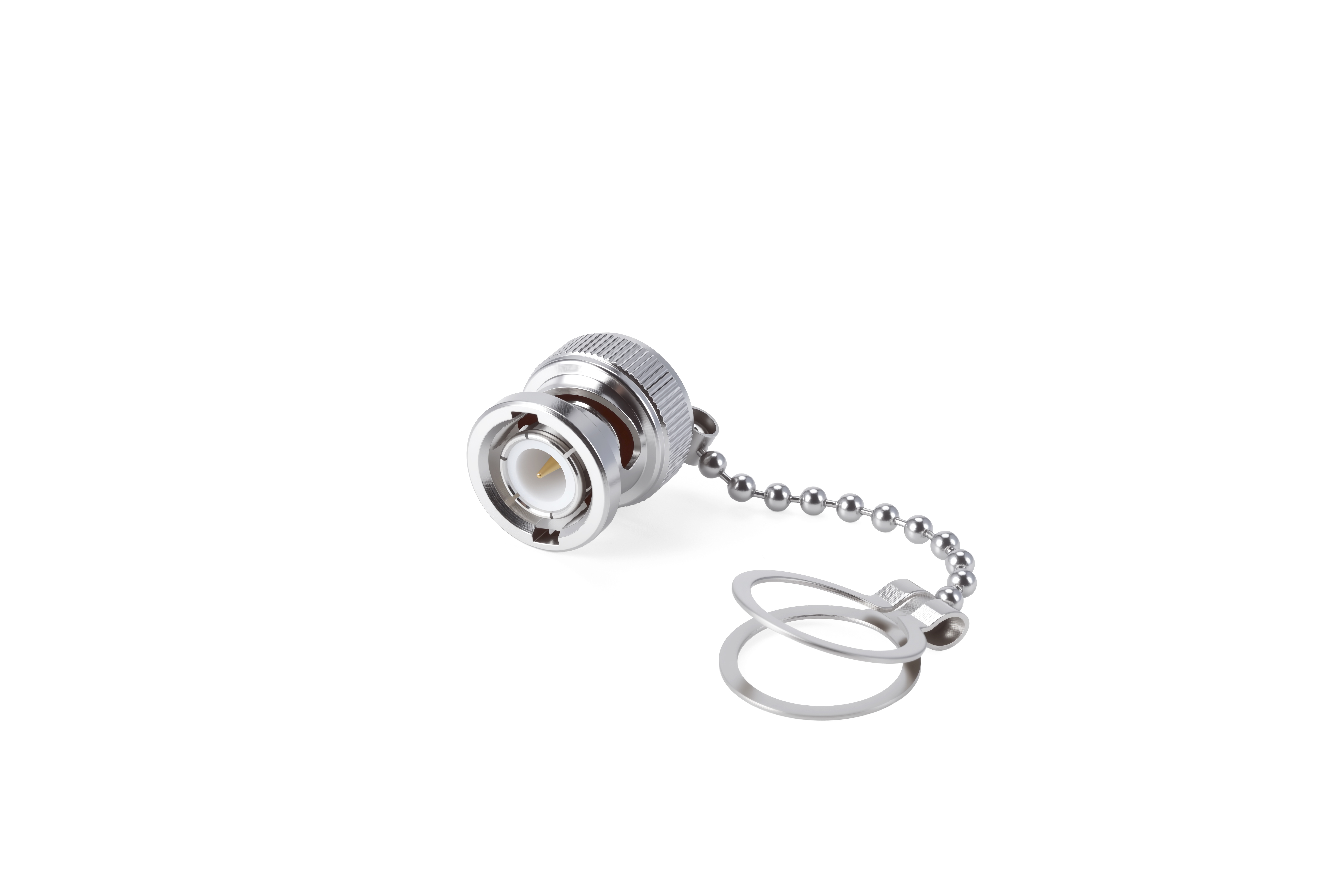

BNC Male Dust Cap with Chain
Model: BNC-J-FCMA
Product Introduction
Type BNC is one kind of RF coaxial connector with a bayonet coupling mechanism, which has the excellent performance of quick connect/disconnect, high reliability, they are widely used in connection with RF coaxial cables in computer field, wireless network, medical equipment and electronic instruments.
Detailed Information
BNC Male Dust Cap with Chain
Teruilai P/N: BNC-J-FCMA Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-4HZ | |
| Dieletric withstanding voltage | 1500V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| Contact Resistance | ||
| .Center conductor | ≦3mΩ | |
| .Outer conductor | ≦2mΩ | |
| VSWR | ≦1.3 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃~+165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | nickel-plated |
| Pin contacts | phosphor bronze | gold-plated |
| Insulators | teflon | |
