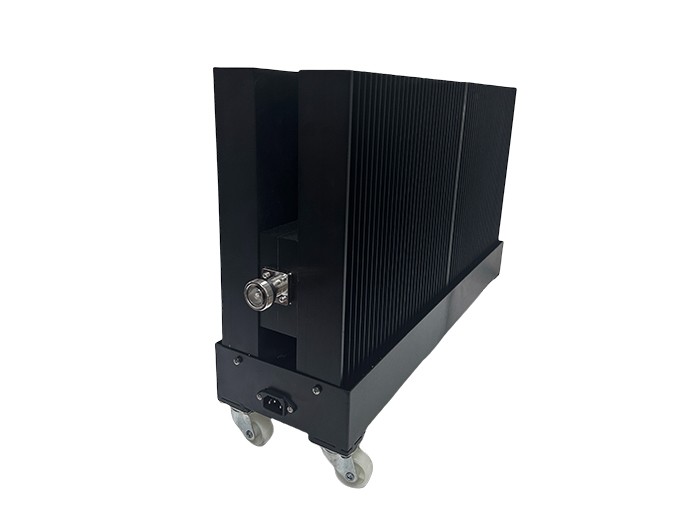

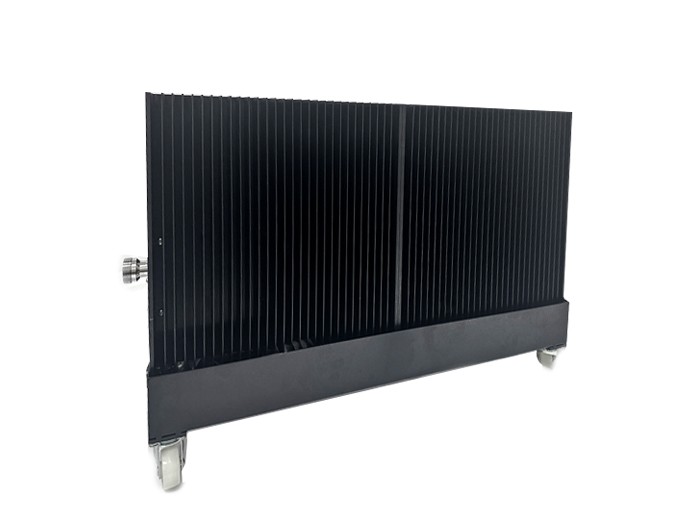

High Power 2000 Watt RF fixed Attenuator Up to 6GHz 50dB with N Male to female
Model: TRL-NMF-2000-6-50
Product Introduction
According to customer requirements, the company can provide a variety of coaxial load. These loads with 50 ohm and 75 ohm impedance can be matched to the impedance of any transmission line and used as power absorption loads.
Detailed Information
High Power 2000 Watt RF fixed Attenuator Up to 6GHz 50dB with N Male to female
Teruilai P/N: TRL-NMF-2000-6-50
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6GHZ | |
| Dielectric withstanding voltage | 1000V | |
| Characteristic impedance | 50Ω | |
| Insulation Resistance | ≧5000MΩ | |
| VSWR | ≦1.25 | |
| Power | 2000W | |
| 50dB | ||
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Environmental data | Requirments | |
| Temperature range | -65℃ to 165℃ | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Coupling nut | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
