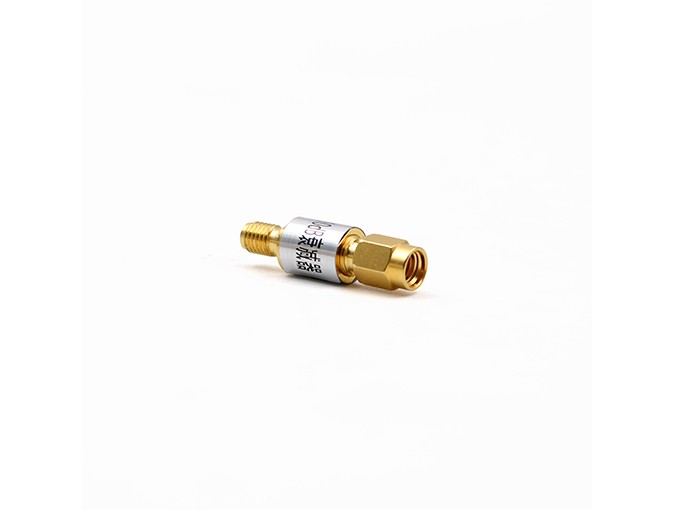

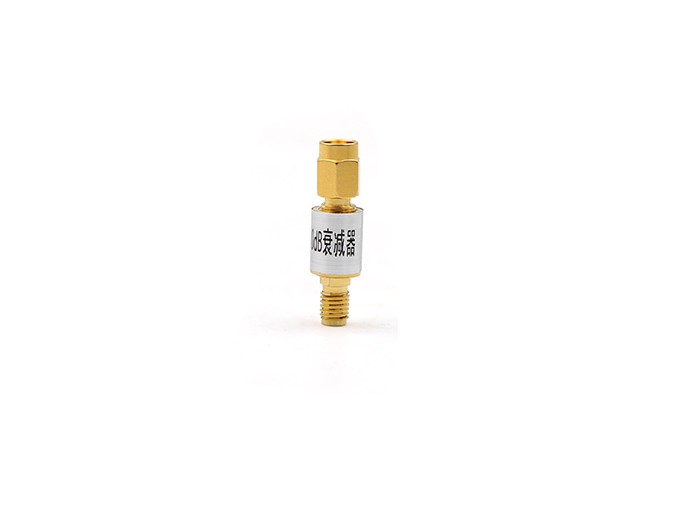

Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB
Model: TRL-SSMAMF-2-26.5-10
Product Introduction
Series 2.92mm Coaxial connectors are one kind of precision millimeter-wave connectors developed from series SMA.They adopt air interface.They have the advantages of small,light,high frequency and superior reliability,etc.The products have been widely used in the field of modern precision measure and micro-wave communication equipment.
Detailed Information

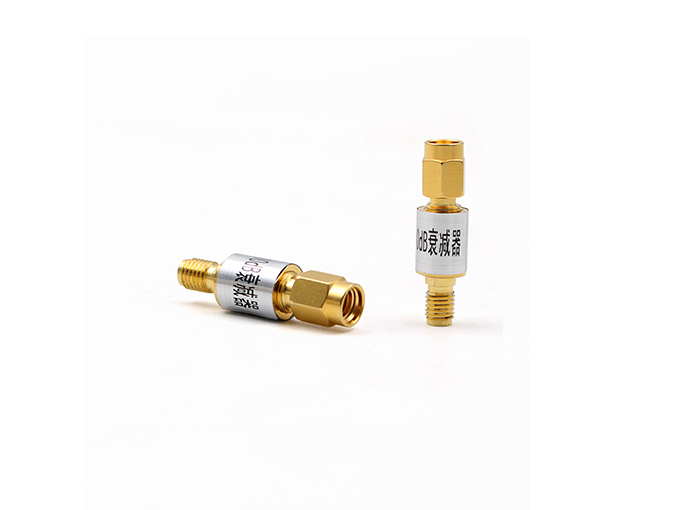

Fixed Attenuator SSMA Male to Female 2W 26.5GHz 10dB
Teruilai P/N : TRL-SSMAMF-2-26.5-10
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 20dB | |
| Power Input | 2Watt | |
| VSWR Maximum | 1.35 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Gold |
| Coupling nut | Brass | Gold |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
