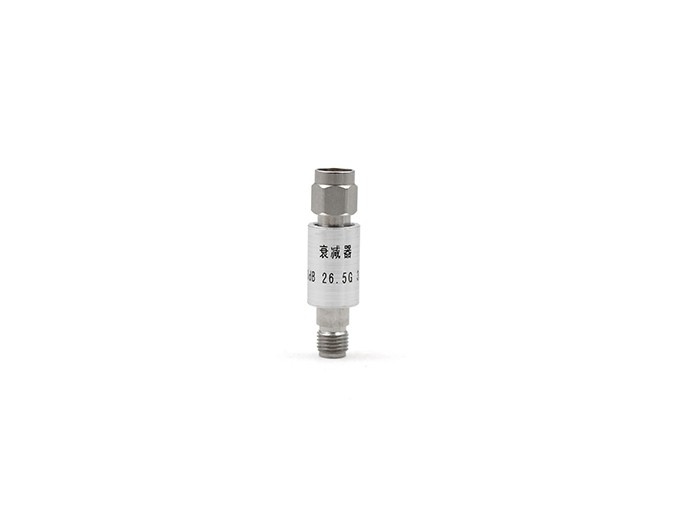

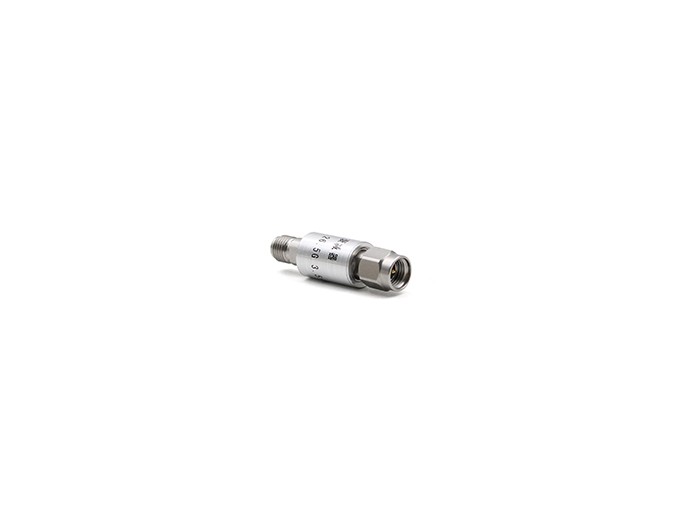

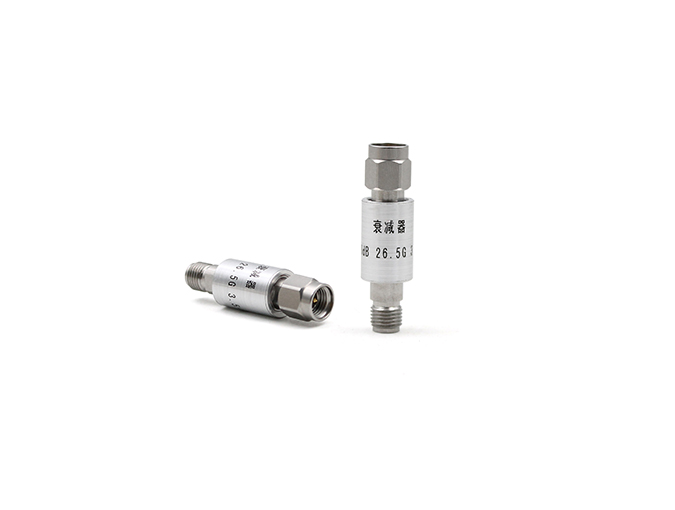

Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Model: TRL-3.5MF-2-26.5-10
Product Introduction
3.5mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz. They are widely used in testing system, aerospace field, microwave weapon systems.
Detailed Information
Fixed Attenuator 3.5 Male to Female 2W 26.5GHz 10dB
Teruilai P/N : TRL-3.5MF-2-26.5-10
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-26.5Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 6dB | |
| Power Input | 2Watt | |
| VSWR Maximum | 1.45:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
