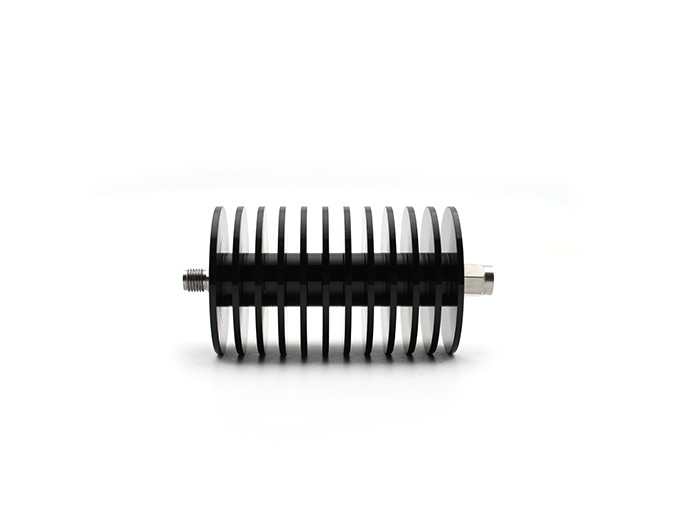

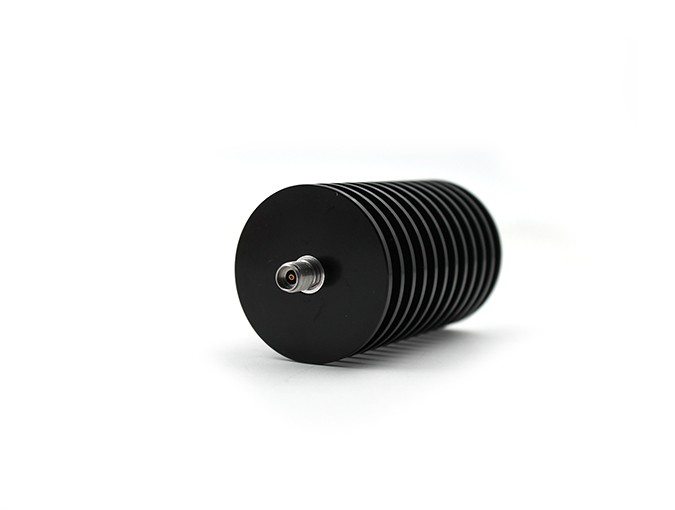

2.92mm Male to Female Fixed RF Attenuator (20W, 40GHz, 20dB) (TERUILAI P/N: TRL-2.92MF-20-40-20) Full Product Specification

1. Core Product Overview

2. Core Product Features

2.1 Ultra-high Frequency Millimeter-wave Performance

• Supports 0-40GHz full-band millimeter-wave signal attenuation, covering mainstream 5G/6G and high-frequency test application bands

• Characteristic impedance of 50Ω, Voltage Standing Wave Ratio (VSWR) ≤1.3

• High attenuation accuracy and flat frequency response, ensuring precise and stable control of RF signal amplitude across the entire frequency range

2.2 High Power Handling Capability

• Rated input power of 20W, meeting the signal attenuation requirements of medium-to-high power millimeter-wave systems

• Optimized heat dissipation structure ensures stable operation under continuous high-power input conditions

2.3 Precision Air Interface Design

• Adopts advanced air interface technology to minimize signal reflection and insertion loss

• 2.92mm male to 2.92mm female straight-through structure, realizing seamless connection and signal conversion between 2.92mm interface devices

• Precision-machined interfaces ensure perfect matching and reliable electrical connection

2.4 Rugged & Durable Construction

• Body made of high-quality stainless steel with passivation treatment, providing excellent corrosion resistance and mechanical strength

• Durability of ≥500 mating cycles, suitable for frequent plugging and unplugging in test and equipment maintenance scenarios

• All-metal shielding structure effectively suppresses electromagnetic interference and guarantees signal integrity

2.5 Extreme Environmental Adaptability

• Ultra-wide operating temperature range: -55℃ ~ +125℃, adapting to extreme high and low temperature working conditions

• Stable performance under harsh industrial and outdoor environments
