RF Fixed Attenuators

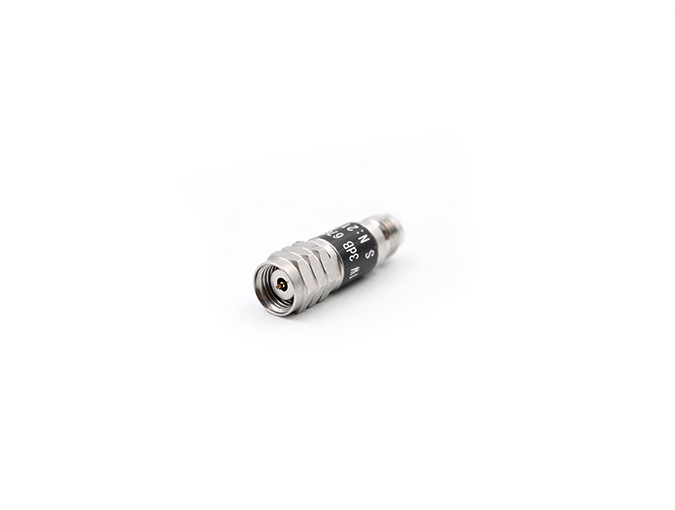

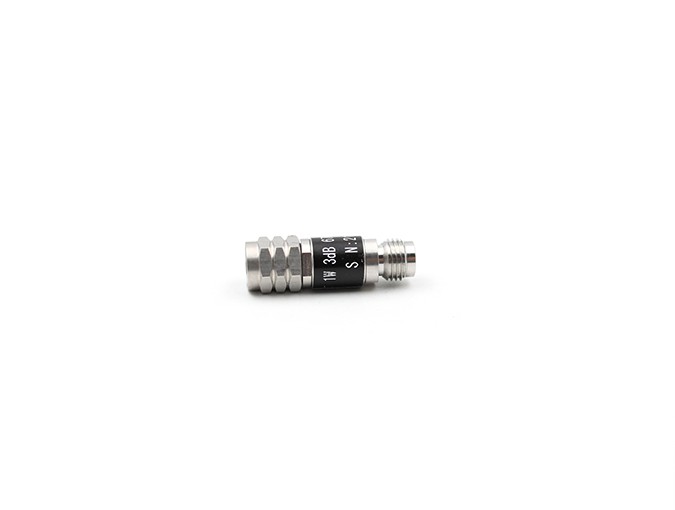

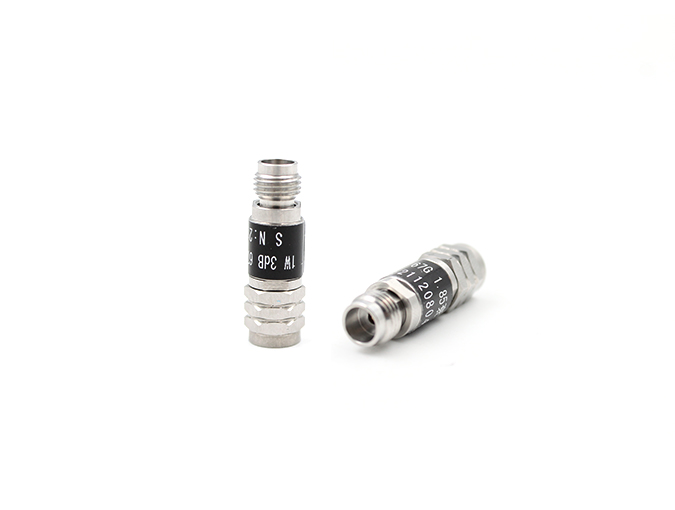

RF Attenuator 1.85mm Male to Female attenuator 1W 67GHZ 3dB
Model: TRL-1.85MF-67-1-3
Product Introduction
1.85mm milimeter wave connector adaptors are the guarantee for the connection between different seriels of RF coaxial connectors. Adaptors have two kinds of material , includes brass and stainless steel. Both of them are RoHS and Reach Compliant . The frequency ranges from DC to 65Ghz.
Detailed Information
RF Attenuator 1.85mm Male to Female attenuator 1W 67GHZ 3dB
Teruilai P/N :TRL-1.85MF-67-1-3
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-67Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 3dB | |
| Power Input | 2Watt | |
| VSWR Maximum | 1.35:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Coupling nut | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
