RF Fixed Attenuators

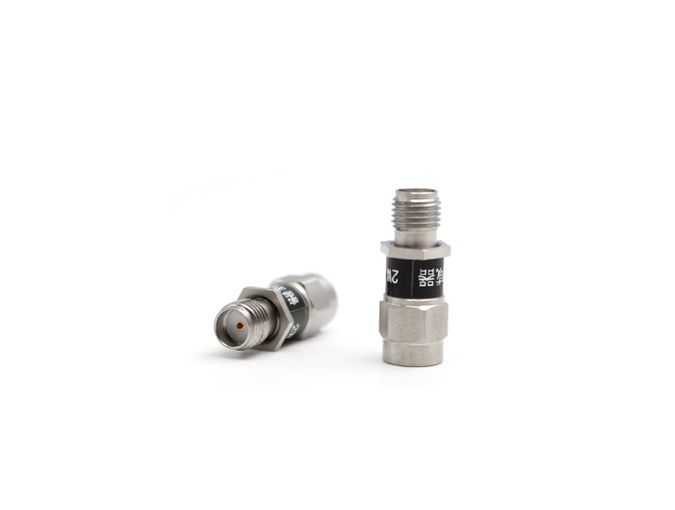

SMA Male to Female Attenuator Power 2W 18GHZ 3dB
Model: TRL-SMAMF-2-18-3
Product Introduction
This SMA attenuator has a male gender on side 1 and a SMA female connector on side 2. Our microwave attenuator is rated to 2 Watts at the stated attenuation value.
Detailed Information
SMA Male to Female Attenuator Power 2W 18GHZ 3dB
Teruilai P/N : TRL-SMAMF-2-18-3 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 3dB | |
| Power Input | 2Watt | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | Teflon | |
