RF Fixed Attenuators

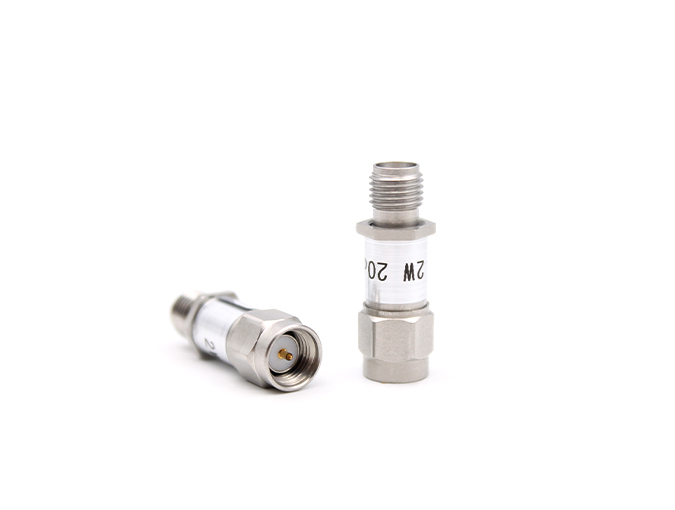

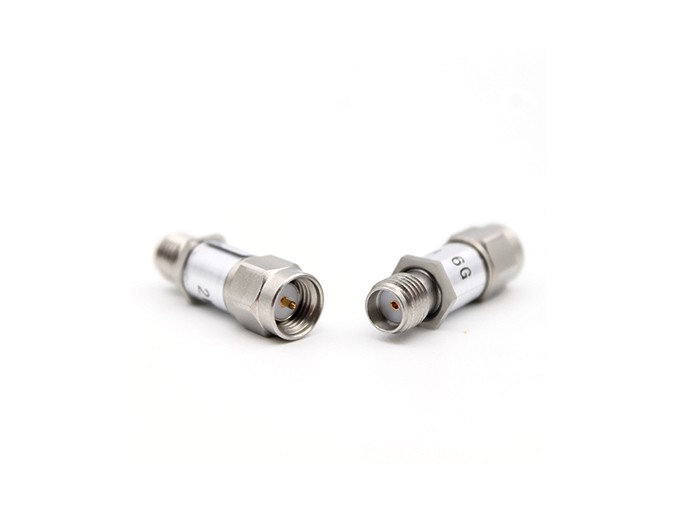

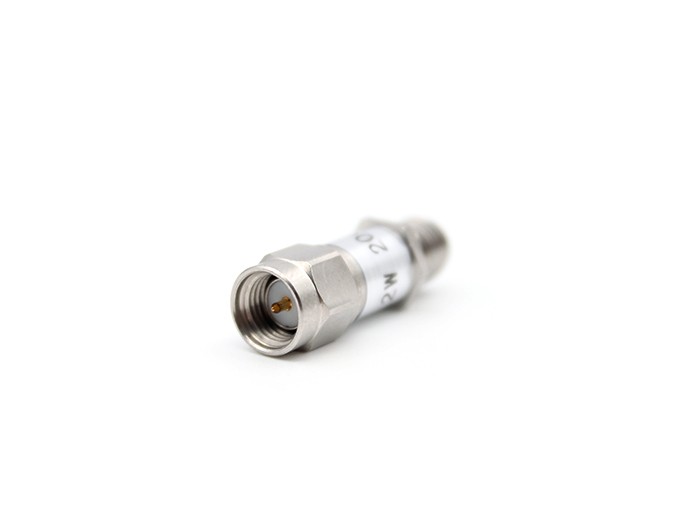

SMA Male to Female Stainless steel Attenuator Power 2W 6GHZ 20dB
Model: TRL-SMAMF-2-6-20
Product Introduction
This SMA attenuator has a male gender on side 1 and a SMA female connector on side 2. Our microwave attenuator is rated to 2 Watts at the stated attenuation value.
Detailed Information
SMA Male to Female Stainless steel Attenuator Power 2W 6GHZ 20dB
Teruilai P/N : TRL-SMAMF-2-6-20 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 20dB | |
| Power Input | 2Watt | |
| VSWR Maximum | 1.25:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
