RF Fixed Attenuators

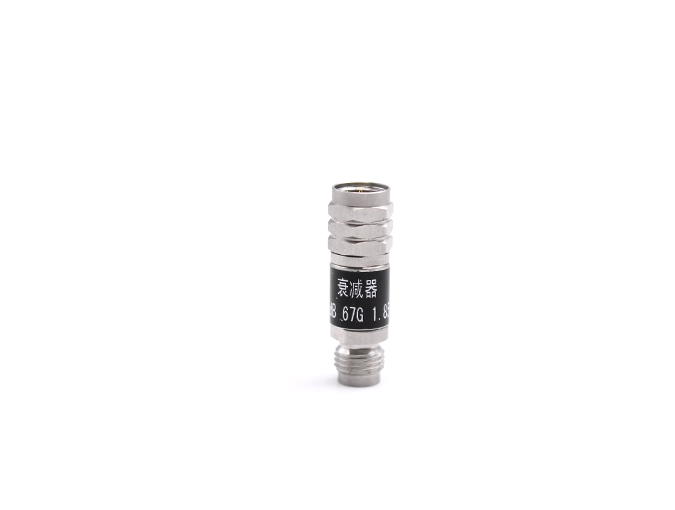

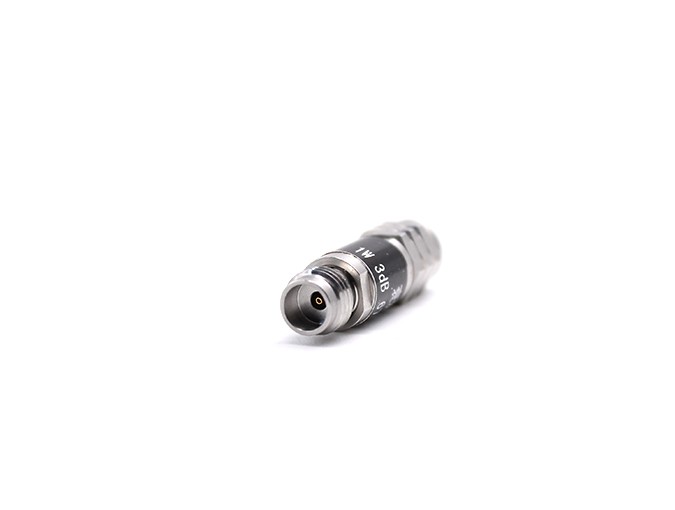

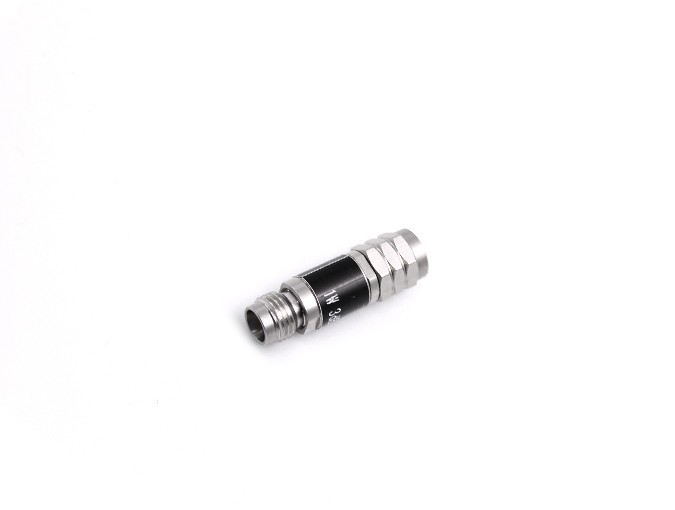

Fixed Attenuator 1.85 Male to Female 2W 67GHz 3dB
Model: TRL-1.85MF-2-67-3
Product Introduction
This type 1.85 attenuator has a male gender on side 1 and a type N female connector on side 2. Attenuator is rated for up to 67GHz.
Detailed Information
Fixed Attenuator 1.85 Male to Female 2W 67GHz 3dB
Teruilai P/N : TRL-1.85MF-2-67-3
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-67Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 3dB | |
| Power Input | 2Watt | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Stainless steel | Passivated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
