RF Fixed Attenuators

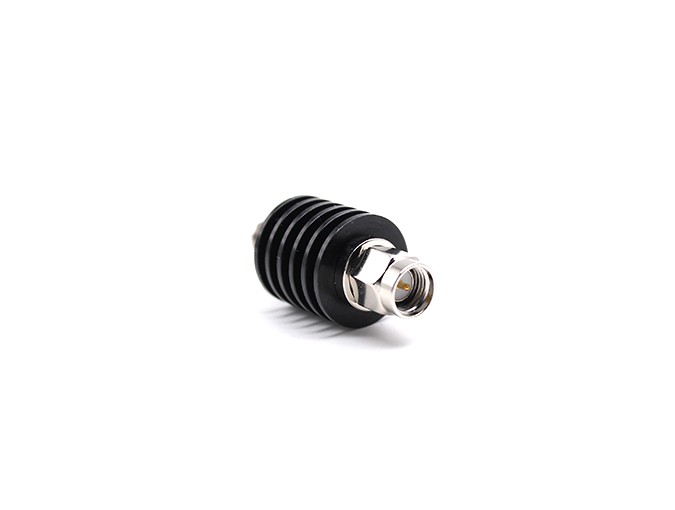

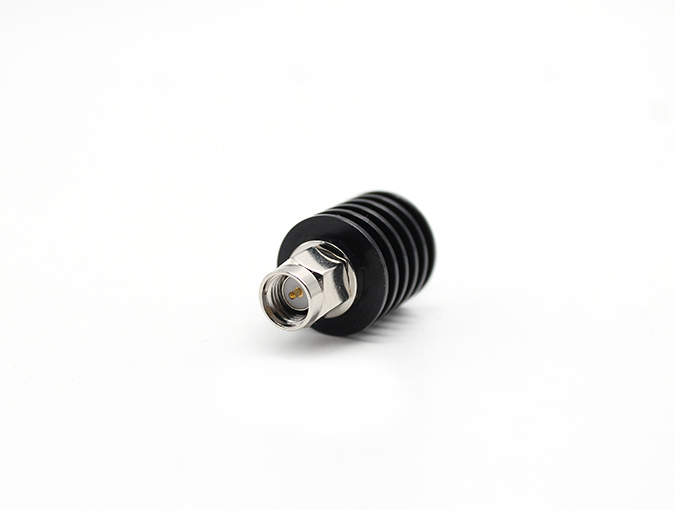

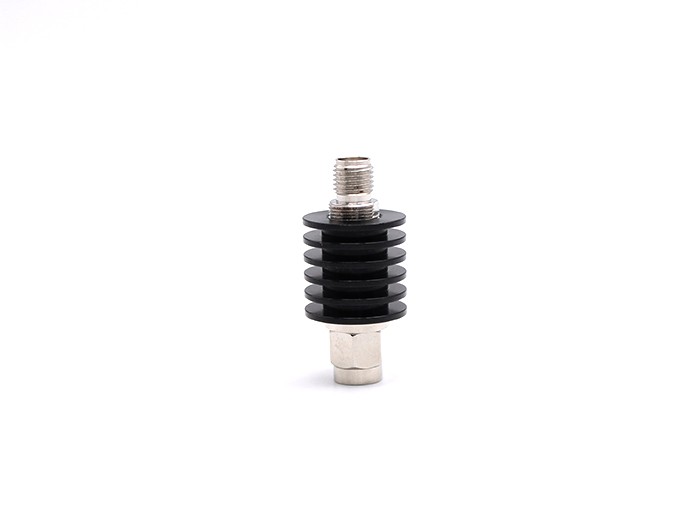

10dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 5 Watts Up to 6 GHz
Model: TRL-SMAMF-5-6-10
Product Introduction
An attenuator is a circuit for introducing a predetermined attenuator over a specified frequency range. Generally, it is indicated by the decibel number of the introduced attenuator and the ohm number of its characteristic impedance. Attenuators are widely used in limited television systems to meet the level requirements of multiple ports.
Detailed Information
10dB Fixed Attenuator, SMA Male to SMA Female Black Anodized Aluminum Heatsink Body Rated to 5 Watts Up to 6 GHz
Teruilai P/N : TRL-SMAMF-5-6-10
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-6Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 10dB | |
| Power Input | 5Watt | |
| VSWR Maximum | 1.35:1 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco-plated |
| Coupling nut | Brass | Suco-plated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
