RF Fixed Attenuators

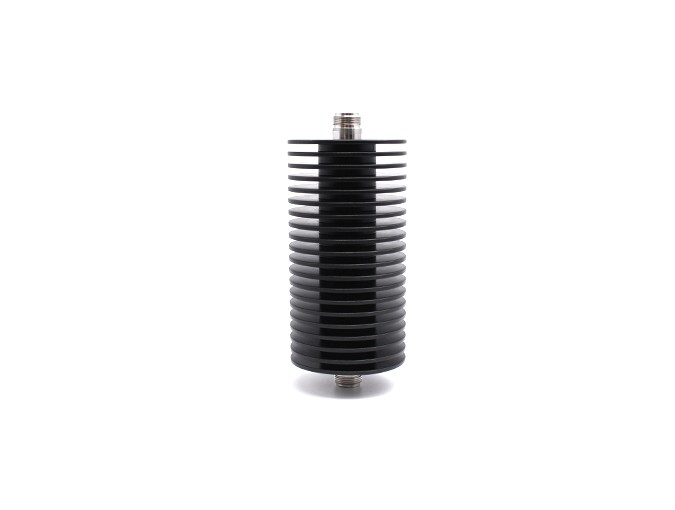

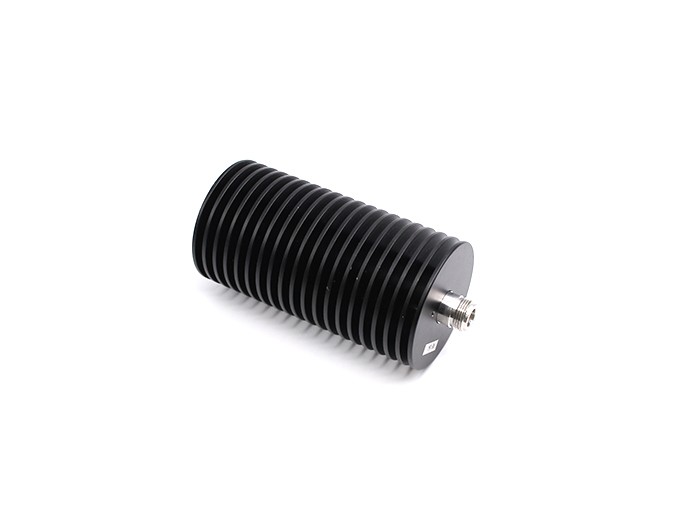

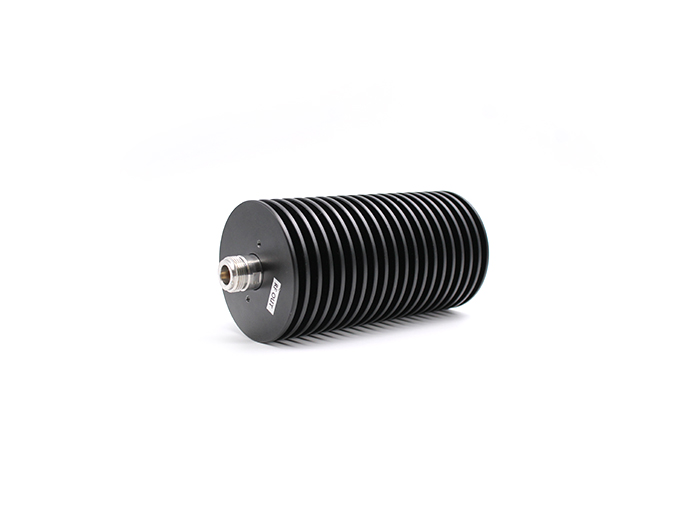

Attenuator N Male to Female attenuator 100W 18GHZ 30dB
Model: TRL-NMF-100-18-30
Product Introduction
An attenuator is a circuit for introducing a predetermined attenuator over a specified frequency range. Generally, it is indicated by the decibel number of the introduced attenuator and the ohm number of its characteristic impedance. Attenuators are widely used in limited television systems to meet the level requirements of multiple ports.
Detailed Information
N RF Fixed Attenuator Male to Female
Teruilai P/N : TRL-NMF-100-18-30 Datasheet
RoHS Certificate: Compliant
| Electrical data | Requirments | |
| Frequency range | DC-18Ghz | |
| Impedance | 50Ω | |
| Nominal Attenuator | 30dB | |
| Power Input | 100Watt | |
| VSWR Maximum | 1.20 | |
| Mechanical data | Requirments | |
| Durability (matings) | ≧500 | |
| Material data | Requirments | |
| Connector parts | Material | Plating |
| Body | Brass | Suco-plated |
| Coupling nut | Brass | Suco-plated |
| Pin contacts | Beryllium copper | Gold |
| Insulators | PTFE | |
